Transparent screen
Transparent screen
Pixel pitch：2.6/3.91/7.8/10mm

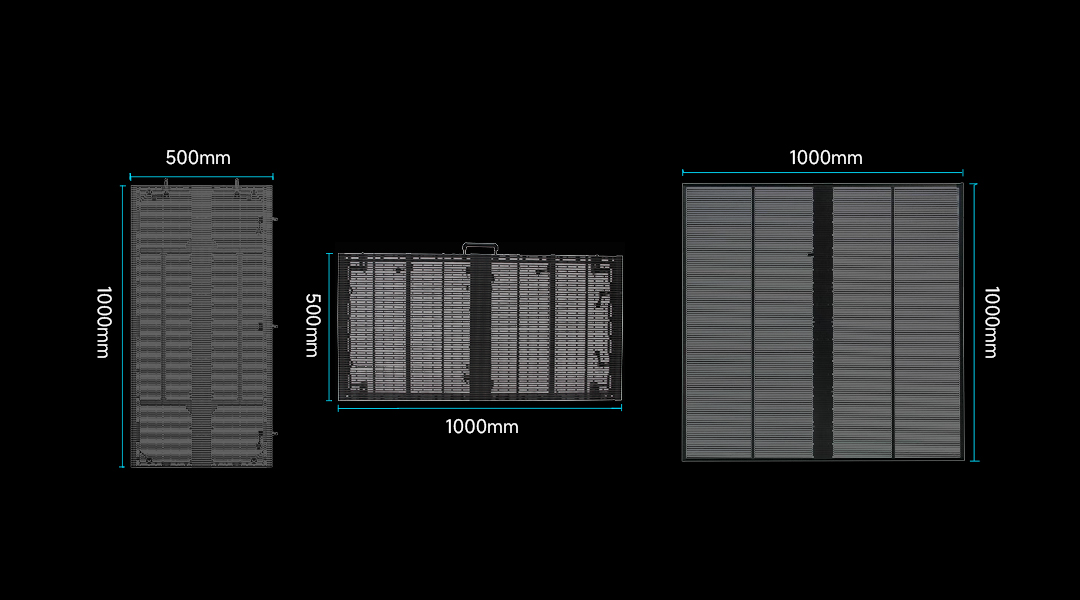

Display size：500X500mm/500x1000mm
Brightness：3000~5000nit
Refresh Frequency：3840HZ
Main features
High transparency design

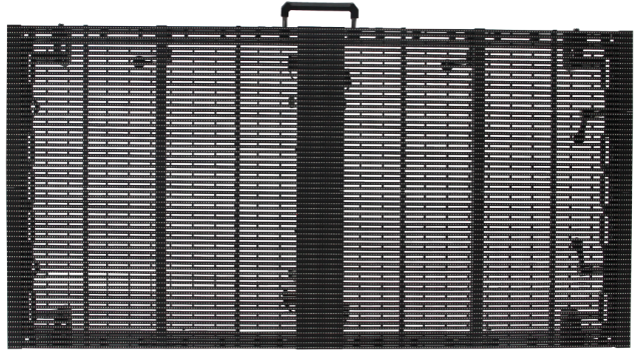

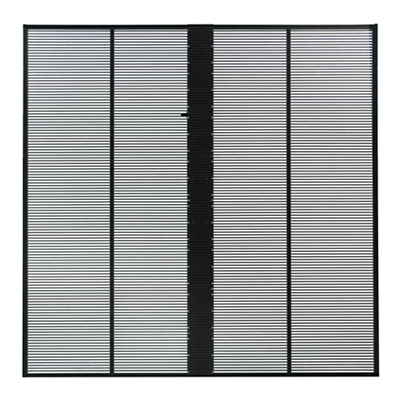

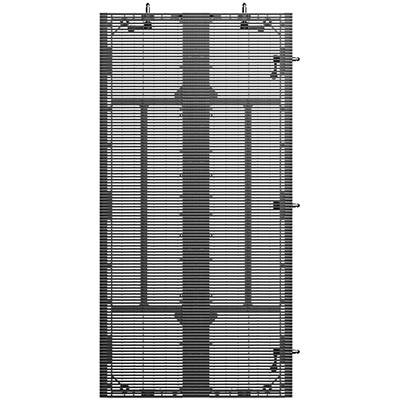

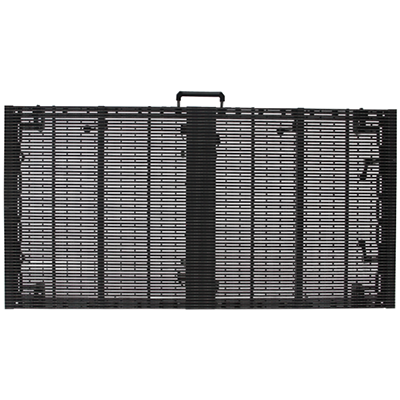

A complete LED unit box is fixed through a PCB board and a support structure. The structure adopts a louver design, with the light strips arranged horizontally at equal intervals one by one, creating a hollowed-out effect and making the screen transparent.
Light and convenient

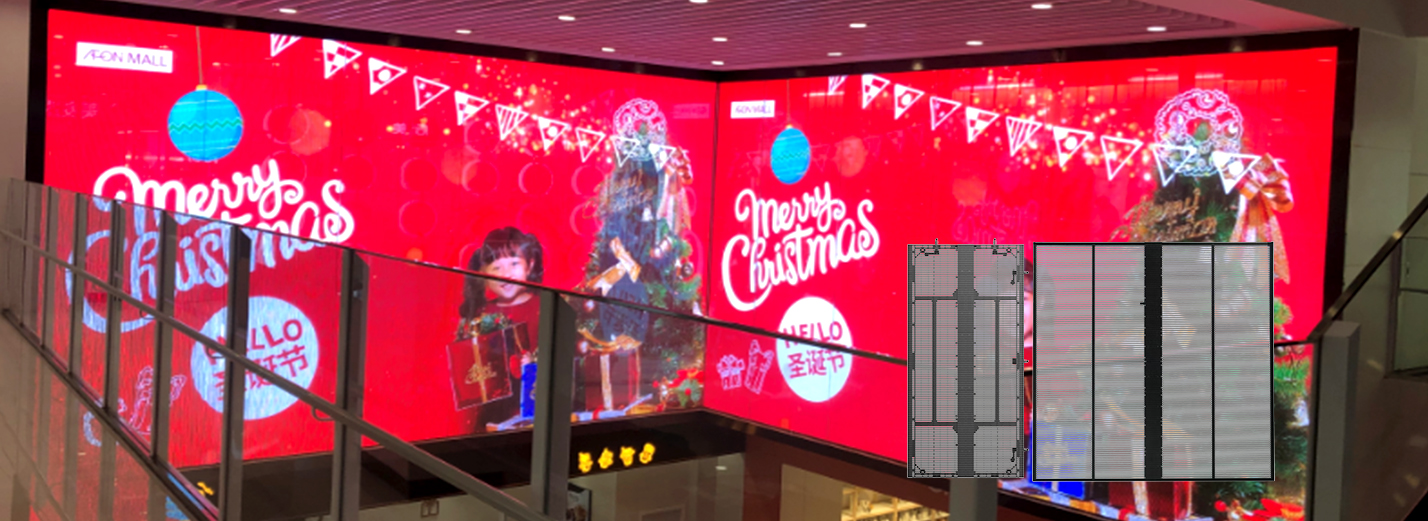

Ornamental value: It has high transparency and the product has high brightness.
Environmental adaptability: The structural unit is a box, and the box unit can bend in a single direction with a large curvature.
Maintainability: Modular maintenance method, capable of both front and back maintenance, facilitating repair.

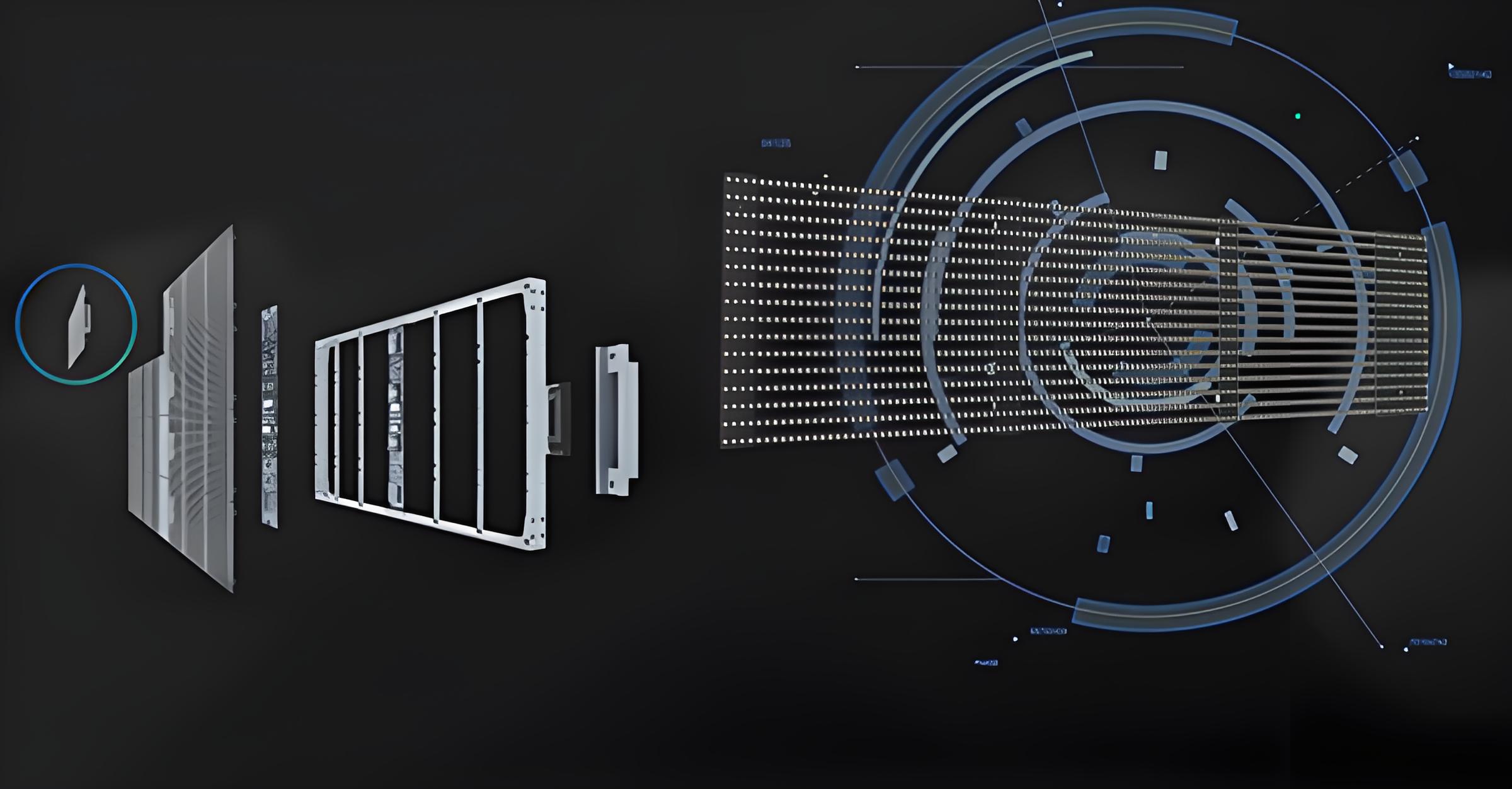

Modular design
High-efficiency modular production and manufacturing, flexible and fast magnetic installation, precise guidance and positioning, stable gold-plated socket transmission, wide-angle positive light-emitting tube mode, all-round chip dispensing protection, and safe circuit line width design.
Parameters
- Productmodel
- Pointspacing
- Pixelstructure
- LEDpackaging
- Pixeldensity
- Modulesize
- Moduleresolution
- Boxspecification
- Boxtype
- Moduleresolution
- Permeability rate
- Powerconsumption (peak, average)
- Brightness
- Drivemode
- Controlsystem peep
- Assembly
- Boxweight
- Graylevel
- Refreshrate
- Framerate change
- Perspective
- Inputvoltage
- P3.91
- 3.91mmH：7.8W
- SD1921(1R1G1B)
- First-line brand
- 32768bit/m²
- 250×500mm
- 64×64bit
- 500x1000/500x500mm
- Aluminum die-casting
- 128x128bit/128x64bit
- 40%
- 600W/m²、180W/m²
- 3000-4000cd/m²
- Constant current drive
- novastar
- Straight screen/curved screen
- 9kg/pcs
- 14bit
- 3840Hz
- 60Hz
- Level140°，Vertical140°
- AC220V/50Hz,AC110V/60Hz
- P6.94
- 6.94mH：6.94W
- SMD1921(1R1G1B)
- First-line brand
- 20738bit/m²
- 250×500mm
- 36×72bit
- 500x1000/500x500mm
- Aluminum die-casting
- 72x144bit/72x72bit
- 35%
- 600w/m²、180W/m²
- 3000-4000cd/m²
- Constant current drive
- novastar
- Straight screen/curved screen
- 9kg/pcs
- 14bit
- 3840Hz
- 60Hz
- Level140°，Vertical140°
- AC220V/50Hz,AC110V/60Hz
