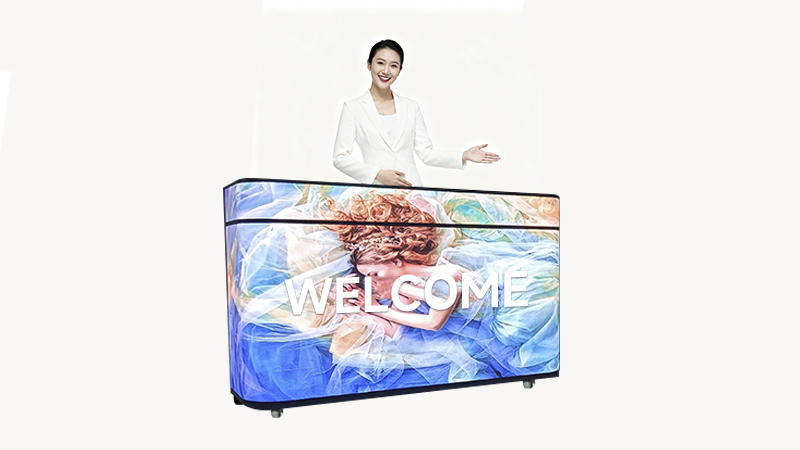

Front desk LED screen
Front desk LED screen
Pixel pitch：GOB2.5/GOB1.8mm
Module size：320x160x5.2mm
Cabinet size：1065x1100x585mm/1675x1100x585mm
Brightness：600nit
Refresh Frequency：3840HZ
Main features
Front maintenance
Broad perspective
Ultra-high definition
High contrast
Seamless splicing
Creative customization
Multi-Scenario Adaptation, Universal Application
Widely applicable to exhibitions, corporate receptions, cash registers, DJ booths and other scenarios, with seamless function-scenario matching.

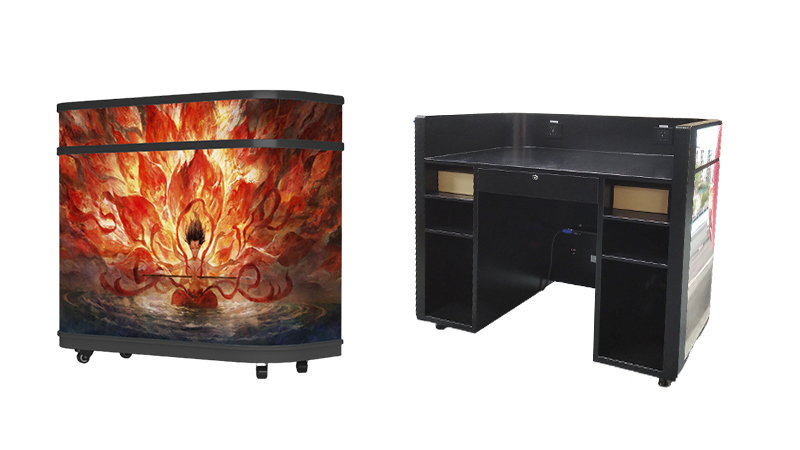

Dual-Purpose Desk, Efficient & Worry-Free

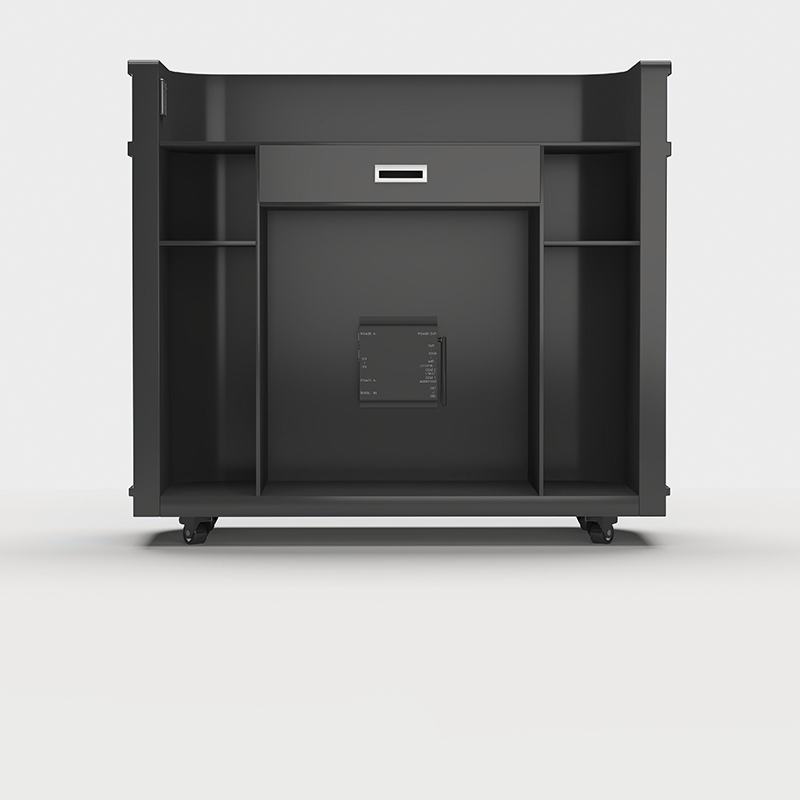

Front LED screen for high-definition display, rear side with ample storage space, balancing aesthetics and practicality.

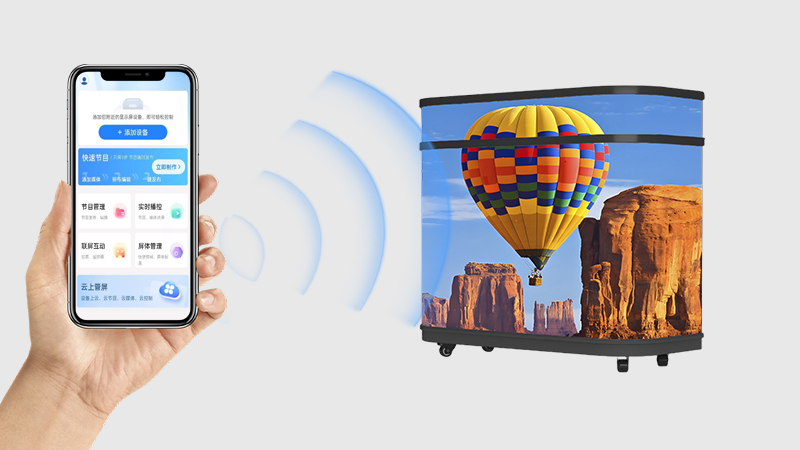

Dual Connection Modes, Quick Content Update
Supports wired + wireless dual connections, allowing free and quick content switching with convenient operation.
参数
- Model
- Pixel Pitch(mm)
- Pixel Density
- LED Module Size(W×H×D)
- Module Type
- Module Resolution(dots)
- Module Arrangement(per cabinet)
- Screen Size(W×H)
- Cabinet Size(W×H×D)
- Cabinet Weight
- Cabinet Resolution(dots)
- Scanning Mode
- Best Viewing Distance(m)
- Brightness
- Refresh Rate
- Grey Scale
- Max./Avg. Power Consumption
- Operating Voltage(Input)
- Operating Temperature
- Operate System
- IP Rating
- P2.5(GOB)
- 2.5
- 160000
- 320×160×5.2mm
- SMD1515
- 128×64
- 6×6
- 1920×960mm
- 1065×1005×85mm
- 160kg/pc
- 768×384
- 32/S
- ≥2.5
- 600Nits
- 3840Hz
- 12-16bit
- Max. 600W/pcs, Avg. 200W/pcs
- AC110-240V, @ 50/60Hz
- -20 - 50, 10%-90%RH
- Novastar
- IP43
- P1.8(GOB)
- 1.8
- 288906
- 320×160×5.2mm
- SMD1212
- 172×86
- 6×6
- 1920×960mm
- 1065×1005×85mm
- 160kg/pc
- 1032x516
- 43/S
- ≥1.86
- 600Nits
- 3840Hz
- 12-16bit
- Max. 600W/pcs, Avg. 200W/pcs
- AC110-240V, @ 50/60Hz
- -20 - 50, 10%-90%RH
- Novastar
- IP43
- P2.5(GOB)
- 2.5
- 160000
- 320×160×5.2mm
- SMD1515
- 128×64
- 8×6
- 2560x960mm
- 1675x1100×85mm
- 215kg/pc
- 1024x384
- 32/S
- ≥2.5
- 600Nits
- 3840Hz
- 12-16bit
- Max. 600W/pcs, Avg. 200W/pcs
- AC110-240V, @ 50/60Hz
- -20 - 50, 10%-90%RH
- Novastar
- IP43
- P1.8(GOB)
- 1.86
- 288906
- 320×160×5.2mm
- SMD1212
- 172x86
- 8×6
- 2560x960mm
- 1675x1100×85mm
- 215kg/pc
- 1376x516
- 43/S
- ≥1.86
- 600Nits
- 3840Hz
- 12-16bit
- Max. 600W/pcs, Avg. 200W/pcs
- AC110-240V, @ 50/60Hz
- -20 - 50, 10%-90%RH
- Novastar
- IP43
