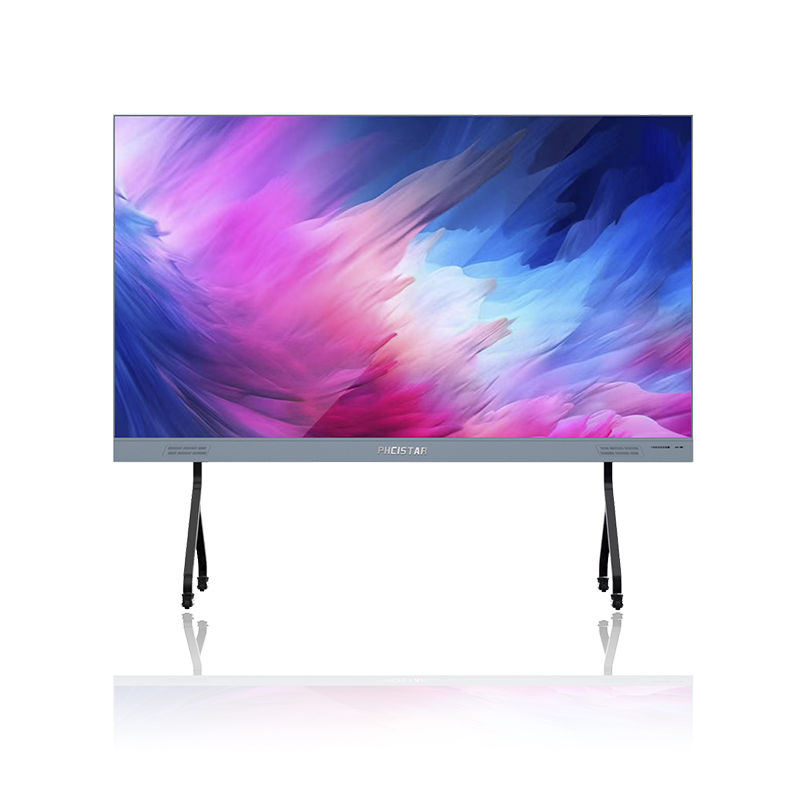

AI Smart all-in-one machine
AI Smart all-in-one machine

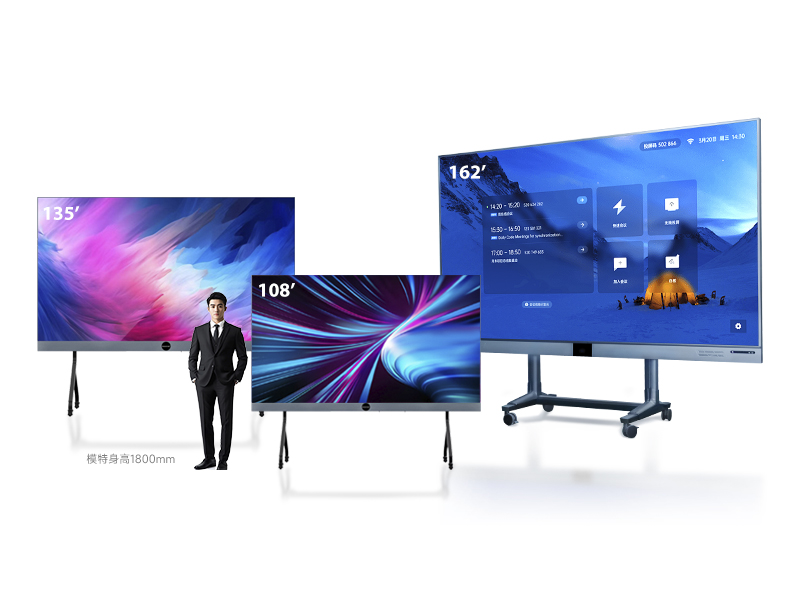

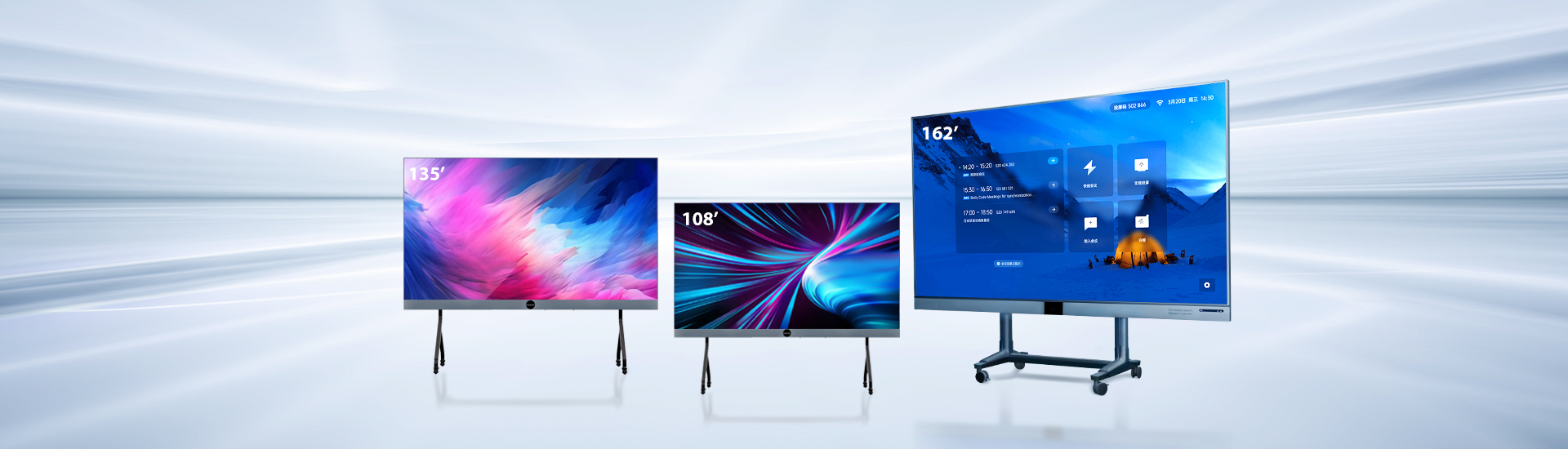

Screen size: 108'/135'/162'
Display size: 2400 x1350mm / 3000 x1687. 5/3600 x2025mm
Distance: 108 '(1.25/0.625), 135' (1.56/0.78125), 162 (1.875/0.9375) '
Brightness：≥600nit
Refresh Frequency：≥3840HZ
Main features
Semiconductor process
Micro LED
Cold screen
Anti-glare
Precise color
Scratch-resistant

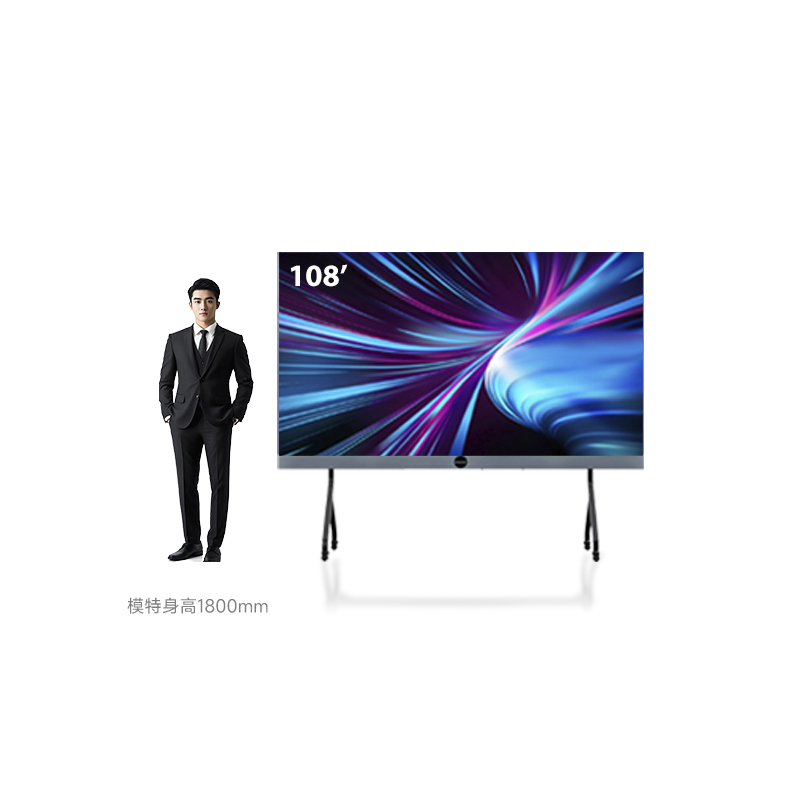

Large Screen Vision
Large screen, sharp details – capture data/text clearly from afar. True colors, vivid display, immersive visuals for presentations/conferences, boosting communication impact.

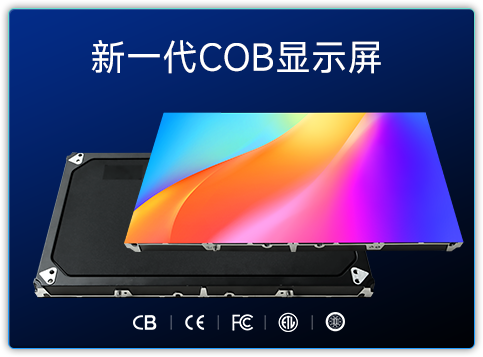

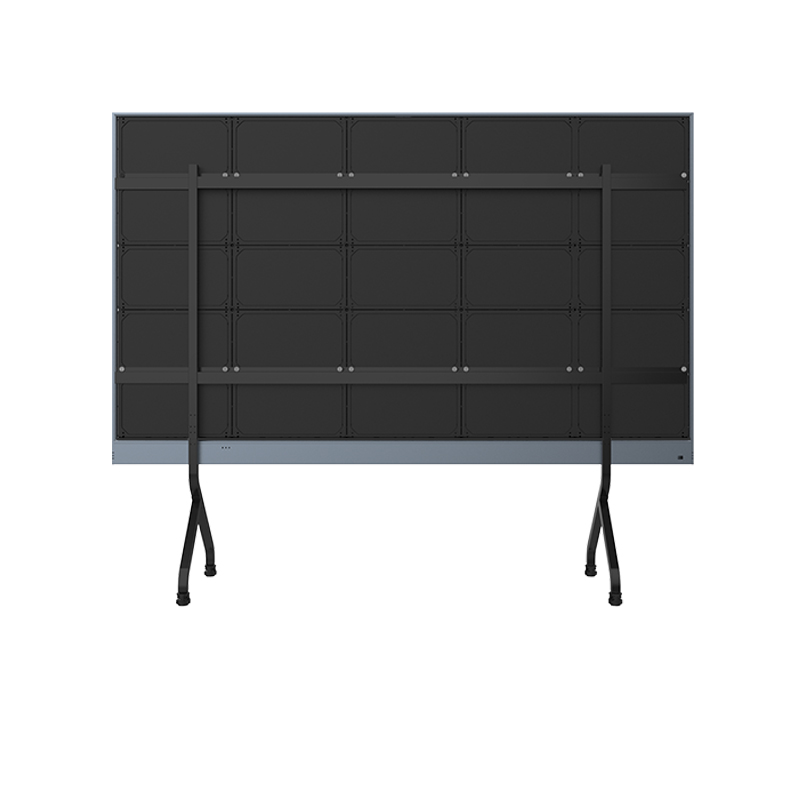

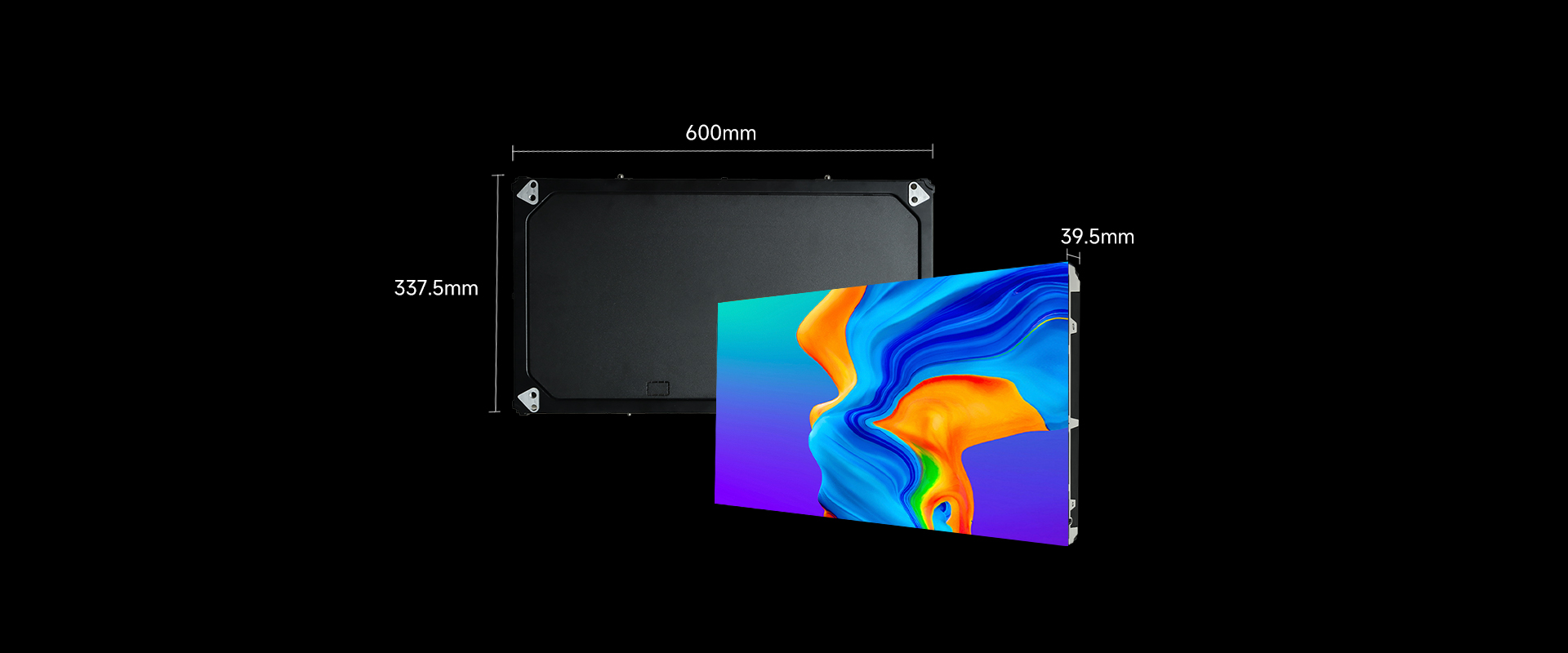

Modular design, freely configurable sizes
Modular cabinets, flexibly combinable. From standard meeting sizes to large irregular screens, no complex customization needed. Easily fits spaces, meets all display needs.

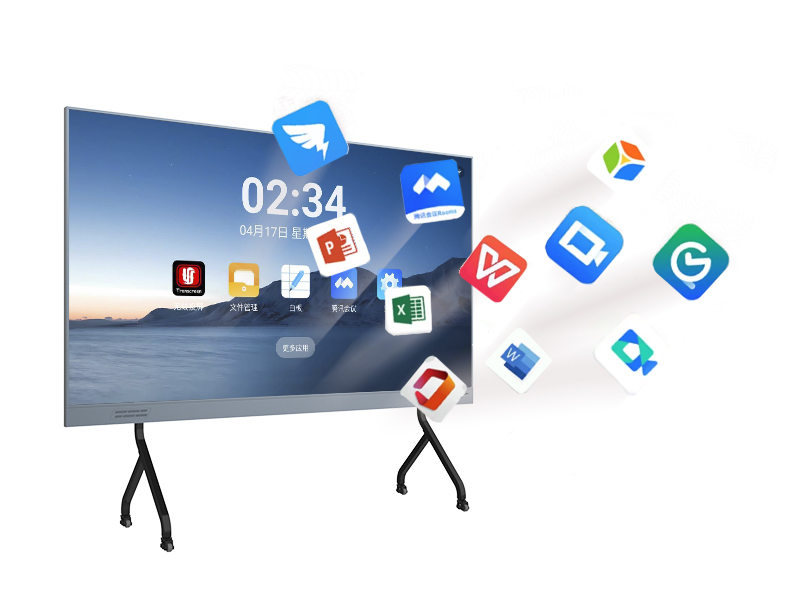

AI core, boosting meeting efficiency
Built-in AI system—more than a display. Expands to real-time translation, voice transcription, smart minutes. Automatically captures key info, generates editable docs.
参数
- Title
- Screen size (inches)
- Display size (mm
- Overall dimensions (mm)
- Dot pitch (mm)/resolution
- Panel type
- Screen brightness
- Contrast
- Viewing Angle
- Refresh rate
- Frame change frequency
- Protection grade
- Maintenance method
- Built-in system
- Hardware configuration
- System version
- Windows System configuration
- Windows version
- Screen projection terminal
- Hardware screen projector
- Wireless screen projection
- Reverse control
- Interactive touch control
- whiteboard
- Voice assistant
- One-click screen-off
- Built-in speaker
- Camera
- Microphone
- Input interface
- Output interface
- USB interface
- Network interface
- WiFi
- MAX power consumption（W）
- Average power consumption（W）
- Power requirements
- LED lifetime（H）
- Wall-mounted bracket
- AIO-108'
- 108
- 2400x1350
- 2440*2195*810
- 1.25(2K)/0.625(4K)
- Full flip-chip COB LED
- 600
- 10000:1
- 140°/ 140°
- 3840
- 60
- IP65(front)
- Front maintenance
- Android/windows Dual system
- 4GB+64GB/8GB+128GB
- Android13
- 8G+128GOptional other configurations
- Windows10
- Support
- Support
- Support
- Support
- 10-point touch
- Support
- Support
- Support
- 2*10W
- Optional
- Optional
- HDMI IN*2
- HDMI OUT*1
- USB2.0*3+USB3.0*1
- LAN*1
- WiFi6
- 1200
- 400
- 100-240V/AC(50-60Hz)
- 100,000
- Optional
- AIO-135'
- 135
- 3000x1687.5
- 3040*2505*810
- 1.56(2K)/0.78125(4K)
- Full flip-chip COB LED
- 600
- 10000:1
- 140°/ 140°
- 3840
- 60
- IP65(front)
- Front maintenance
- Android/windows Dual system
- 4GB+64GB/8GB+128GB
- Android13
- 8G+128GOptional other configurations
- Windows10
- Support
- Support
- Support
- Support
- 10-point touch
- Support
- Support
- Support
- 2*10W
- Optional
- Optional
- HDMI IN*2
- HDMI OUT*1
- USB2.0*3+USB3.0*1
- LAN*1
- WiFi6
- 1750
- 558
- 100-240V/AC(50-60Hz)
- 100,000
- Optional

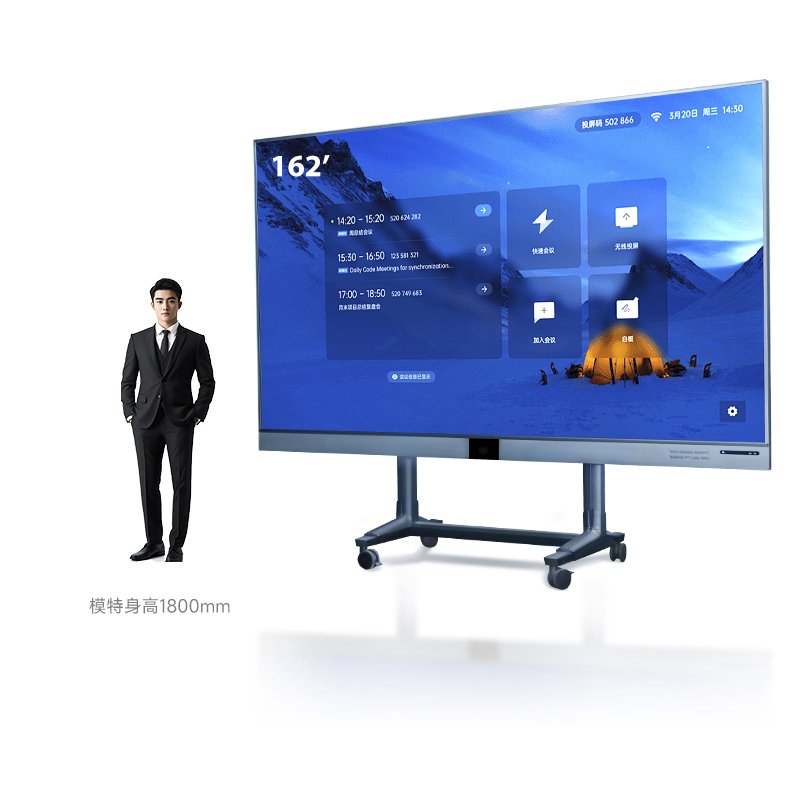

- AIO-162'
- 162
- 3600x2025
- 3640*2845*810
- 1.875(2K)/0.9375(4K)
- Full flip-chip COB LED
- 600
- 10000:1
- 140°/ 140°
- 3840
- 60
- IP65(front)
- Front maintenance
- Android/windows Dual system
- 4GB+64GB/8GB+128GB
- Android13
- 8G+128GOptional other configurations
- Windows10
- Support
- Support
- Support
- Support
- 10-point touch
- Support
- Support
- Support
- 2*10W
- Optional
- Optional
- HDMI IN*2
- HDMI OUT*1
- USB2.0*3+USB3.0*1
- LAN*1
- WiFi6
- 2880
- 960
- 100-240V/AC(50-60Hz)
- 100,000
- Optional
