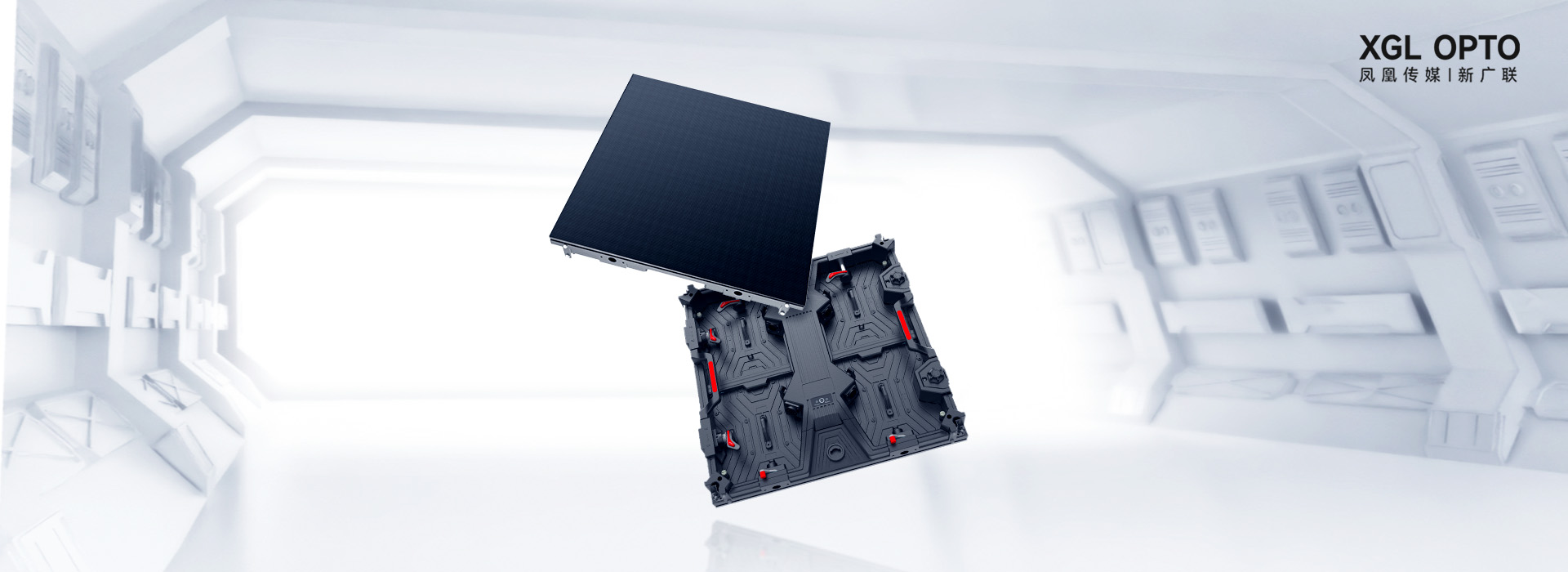

Q series

Q series

Pixel pitch:1.9/2.3/2.6mm
Module size:250x250mm

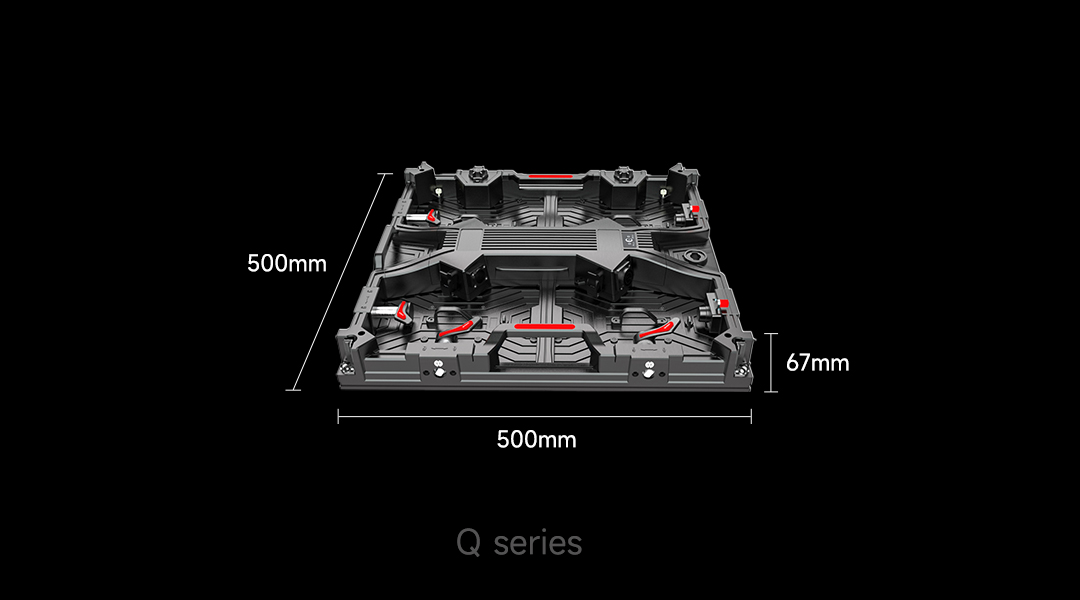

Cabinet size:500x500x67mm
Brightness:1200~1500nit
Refresh Frequency:7680HZ

Main feature

High refresh7680Hz
HDR technology
Wall mounted structure
energy conservation
Front & rear maintenance
Waterproof surface of LED panel

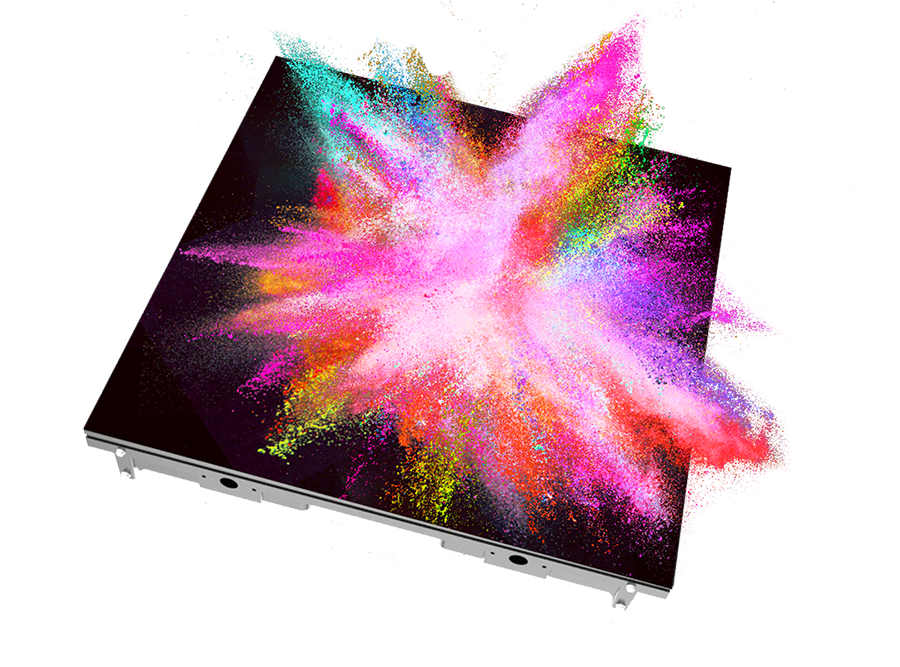

Fine & delicate picture quality
Realistic & beautiful colors

High brightness: 2000nit;

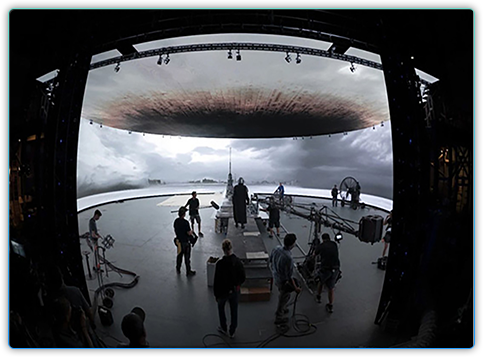

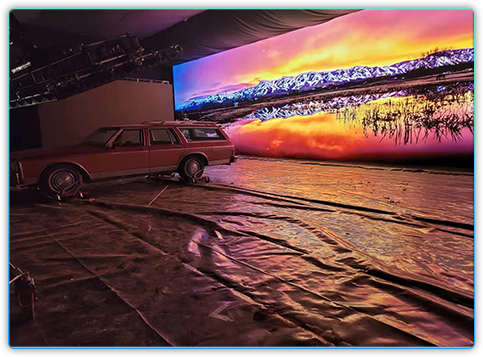

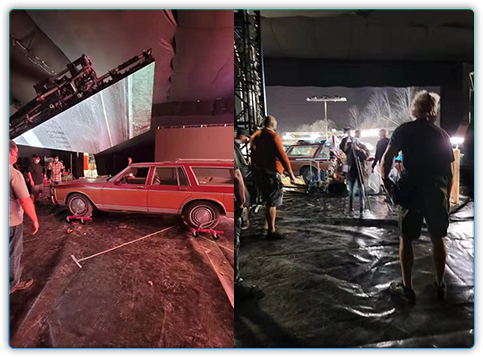

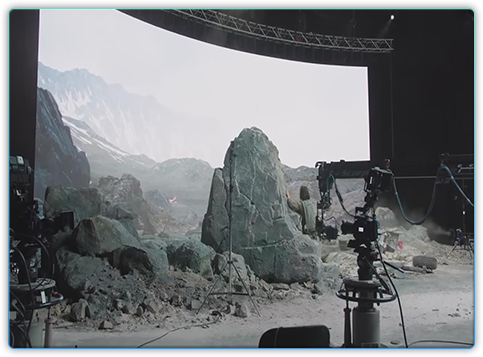

High gray scale: 16Bt high-quality display effect, to meet the application of XR scenarios;
Wide color gamut: >98% DC-P3, delicate and realistic picture quality, showing the colorful to the real world;
High refresh and high frame rate: Support high refresh 7680HZ, high frame rate 240HZ;
Support HDR function: delicate and realistic picture quality, excellent display effect

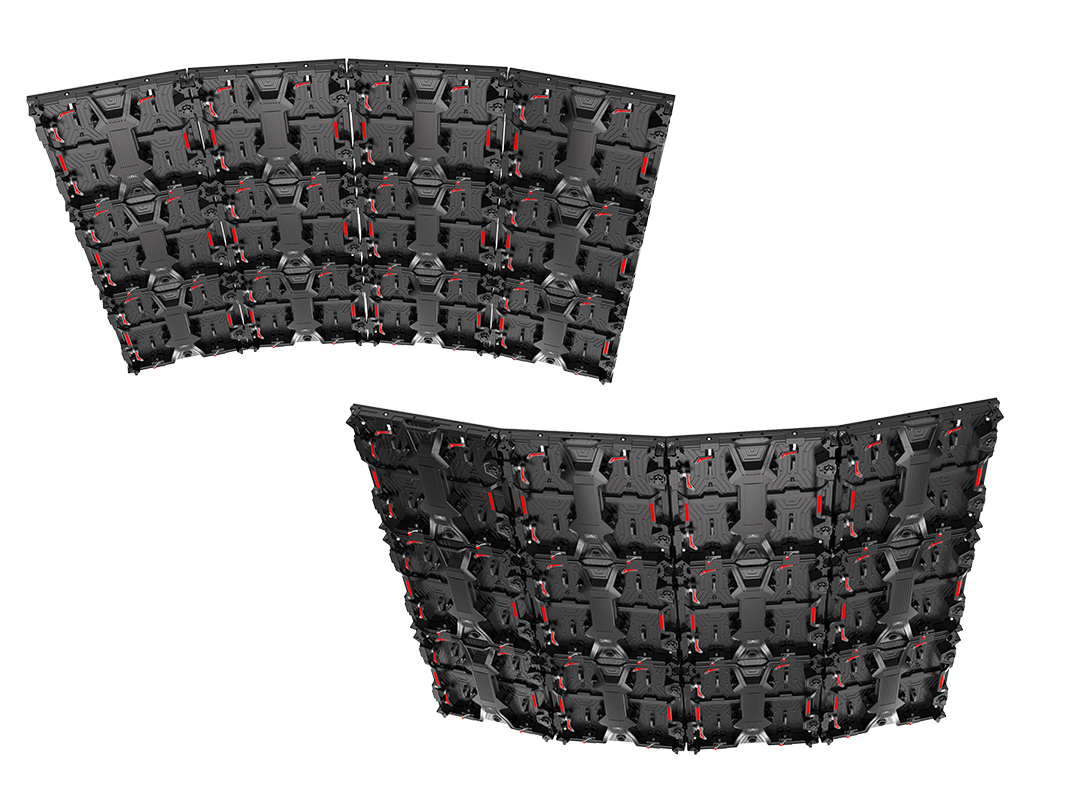

3D splicing curved lock
maxi allowable value of inner & outer arcs is± 12 degrees

Invisible handle: "hidden" in the box, stylish and simple
Three-dimensional splicing: box design arc lock, support inner arc, outer arc Angle adjustment
Fast loading and unloading: private mold fast lock, faster installation
Seat hoisting Optional: humanized design, both can be mounted, but also can be lifted

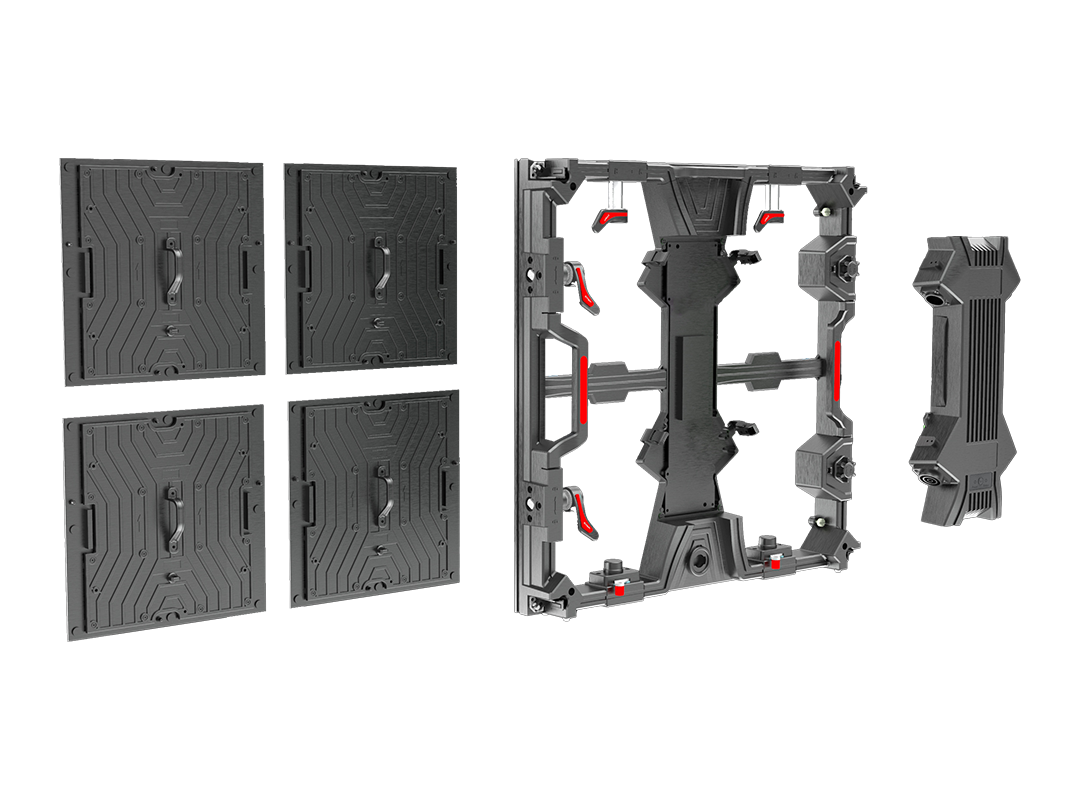

Quick maintenance
Support pre - and post maintenance

Fast loading and unloading: private mold fast lock, faster installation
Floor protection: four corners anti-collision design, better protect the lamp beads
Easy maintenance: Both modules and power boxes support front and rear maintenance

Coral dimension

Value

  • Title
  • LED type
  • Pixel pitch
  • Module resolution(Pixel)
  • Module size(mm)
  • Cabinet resolution(Pixel)
  • Cabinet size(mm)
  • Cabinet weight
  • method of Installation
  • Pixel Density(dot/m
  • Brightness(Nits)
  • H view/V view
  • Highest Contrast Ratio
  • Signal color processing bits
  • Scan method
  • Refresh Frequency
  • Frame change frequency
  • Color temperature of screen
  • perating Voltage
  • Peak power
  • Average power
  • Continuous working time
  • Average trouble-free operating
  • LED Life
  • Operating ambient temperature
  • Operating environment humidity
  • Q1.9
  • SMD1212
  • 1.953mm
  • 128×128
  • 250×250
  • 256×256
  • 500×500×67
  • 8.8Kg/Cabinet
  • Hoisting/mounting/wall hanging
  • 262144
  • 1200-1500 nit adjustable
  • H160°/V160°
  • ≥5000:1
  • 15bit
  • 8
  • ≥7680
  • 23.5-240Hz
  • 2000K-15000K adjustable
  • AC:100V-240V(50-60Hz
  • 800W/m²
  • 267W/m²
  • ≥7x24hrs
  • ≥10000 hours
  • 100000 hours
  • -10°C~+40C
  • 10%~90%RH,no condensation
  • Q2.3
  • SMD1515
  • 2.315mm
  • 108x108
  • 250×250
  • 216×216
  • 500×500×67
  • 8.8Kg/Cabinet
  • Hoisting/mounting/wall hanging
  • 186624
  • 1200-2000 nit adjustable
  • H160°/V160°
  • ≥5000:1
  • 16bit
  • 9
  • ≥7680
  • 23.5-240Hz
  • 2000K-15000K adjustable
  • AC:100V-240V(50-60Hz
  • 800W/m²
  • 267W/m²
  • ≥7x24hrs
  • ≥10000 hours
  • 100000 hours
  • -10°C~+40C
  • 10%~90%RH,no condensation
  • Q2.6
  • SMD1515
  • 2.604mm
  • 96×96
  • 250×250
  • 192×192
  • 500×500×67
  • 8.8Kg/Cabinet
  • Hoisting/mounting/wall hanging
  • 147456
  • 1200-2000 nit adjustable
  • H160°/V160°
  • ≥5000:1
  • 16bit
  • 8
  • ≥7680
  • 23.5-240Hz
  • 2000K-15000K adjustable
  • AC:100V-240V(50-60Hz
  • 800W/m²
  • 267W/m²
  • ≥7x24hrs
  • ≥10000 hours
  • 100000 hours
  • -10°C~+40C
  • 10%~90%RH,no condensation
