R series outdoor
R series outdoor
Pixel pitch：3.91/4.81mm
Module size：250x250mm

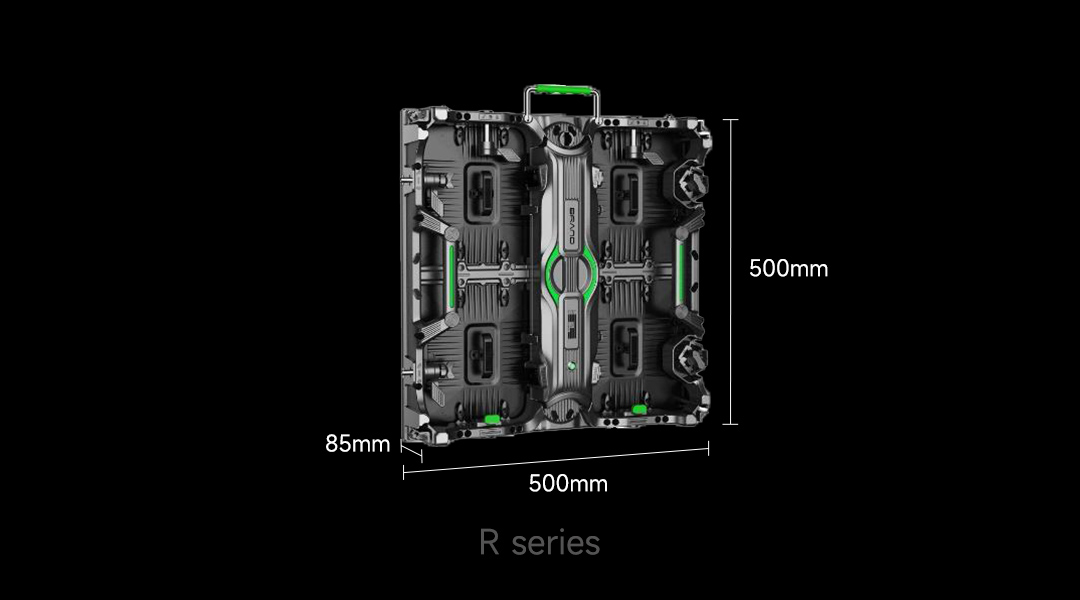

Cabinet size：500x500x85mm
Brightness：4500~5000nit
Refresh Frequency：≥3840HZ
Main feature
High refresh rate 7680Hz
HDR技术
Wall hanging structure
More energy-efficient
Front & rear maintenance
Crash-proof & waterproof
Independent central control
Easy to disassemble
Easy maintenance, support before and after maintenance, independent central control, easy to disassemble;
Universal HUB board, control more freely;
160° ultra wide Angle
Color temperature & brightness is adjustable
Unified module size, more widely used
160 degrees ultra-wide viewing Angle, color temperature and brightness can be adjusted, wider viewing Angle, more comfortable and natural eyes
Long service life, make the gorgeous more lasting
Low light high grey
The image is more detailed and realistic
Low light and high gray, the image is more delicate and realistic;
Universal HUB board, control freely;
Unified module size, more widely used;
参数
- Title
- LED灯种类
- 点间距
- 模组分辨率
- 模组尺寸
- 箱体分辨率
- 箱体尺寸
- 箱体重量
- 安装方式
- 点密度
- 亮度
- 水平视角/垂直视角
- 最高对比度
- 信号颜色处理位数
- 扫描方式
- 刷新频率
- 换帧频率
- 屏体色温
- 工作电压
- 峰值功率
- 平均功率
- 连续工作时间
- 平均无故障工作时间
- LED寿命
- 运行环境温度
- 运行环境湿度
- R3.91
- SMD1921
- 3.91mm
- 64×64
- 250×250
- 128×128
- 500×500×85
- 7.6Kg/Cabinet
- Hoisting/mounting/wall hanging
- 65536
- 4500-5000 nit adjustable
- H140°/V140°
- ≥5000：1
- 14bit
- 16
- ≥3840
- 60Hz
- 2000K-15000K adjustable
- AC:100V-240V(50-60Hz
- 810W/m²
- 270W/m²
- ≥7x24hrs
- ≥10000 hours
- 100000 hours
- -10°C~+40C
- 10%~90%RH,no condensation
- R4.81
- SMD1921
- 4.81mm
- 52x52
- 250×250
- 104×104
- 500×500×85
- 7.6Kg/Cabinet
- Hoisting/mounting/wall hanging
- 43222
- 4500-5000 nit adjustable
- H140°/V140°
- ≥5000：1
- 14bit
- 13
- ≥3840
- 60Hz
- 2000K-15000K adjustable
- AC:100V-240V(50-60Hz
- 810W/m²
- 270W/m²
- ≥7x24hrs
- ≥10000 hours
- 100000 hours
- -10°C~+40C
- 10%~90%RH,no condensation
