FS2 series
FS2 series
Pixel pitch：4/5.71/6.67/8/10mm
Module size：480x320mm

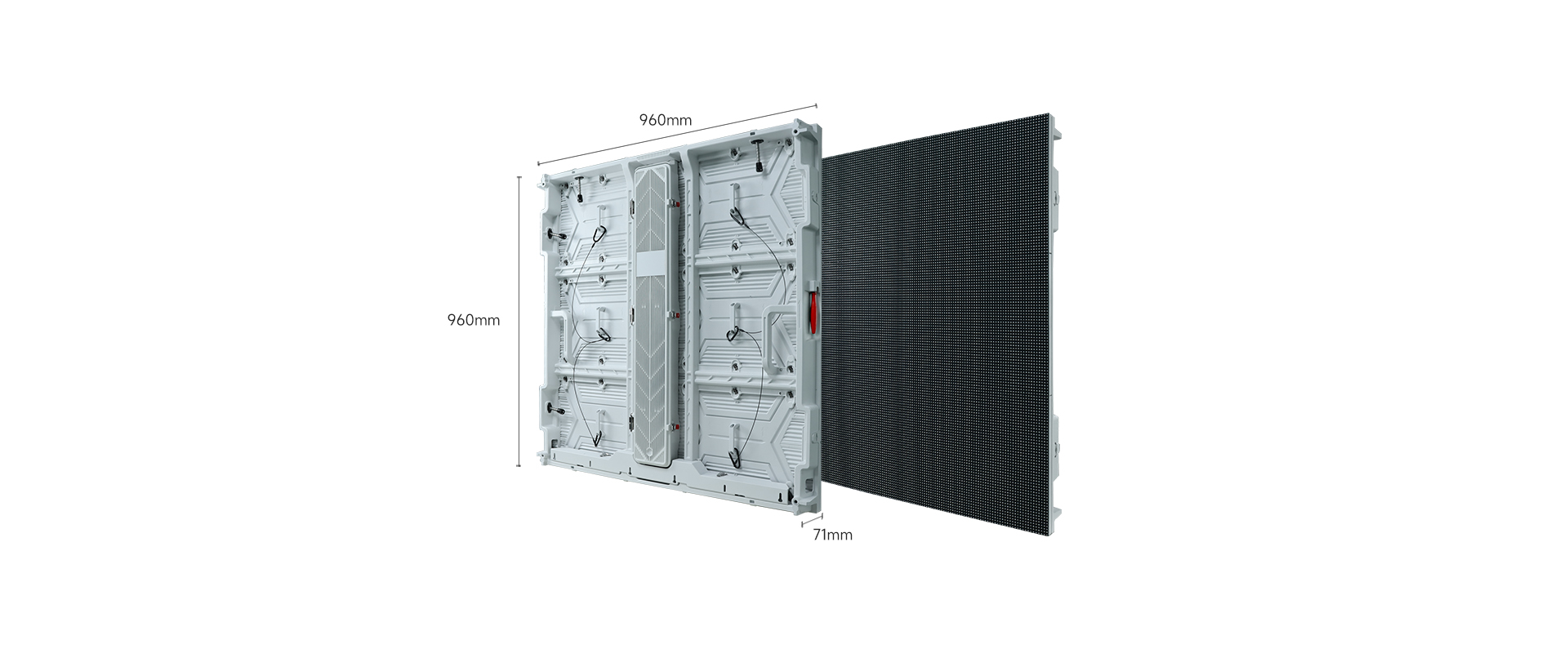

Cabinet size：960x960x71mm
Brightness：5000~10000nit
Refresh Frequency：3840Hz
Main Features
Original energy-saving technology
Energy-saving 20~35%
High refresh rate, high grey scale
Front and rear protection rating: IP65
Highly integrated design
Installation & Maintenance

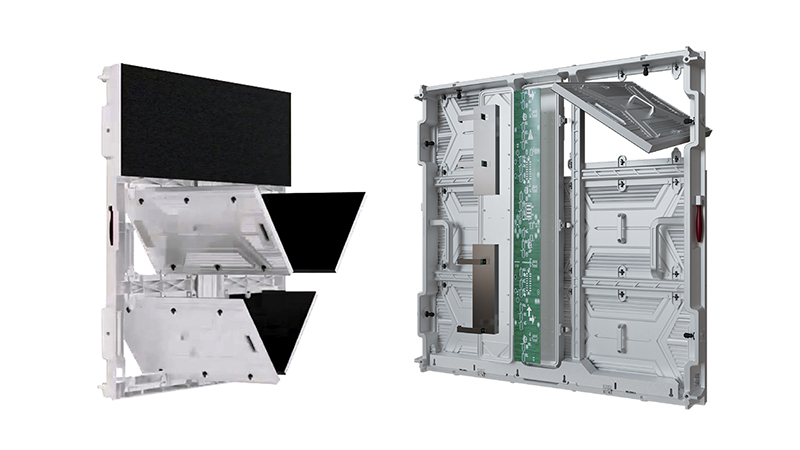

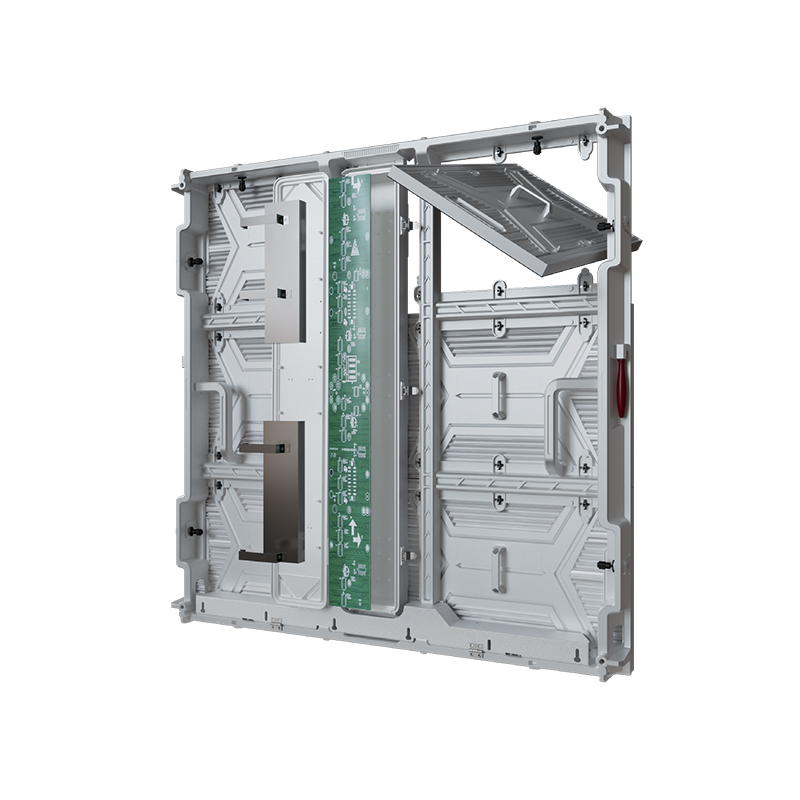

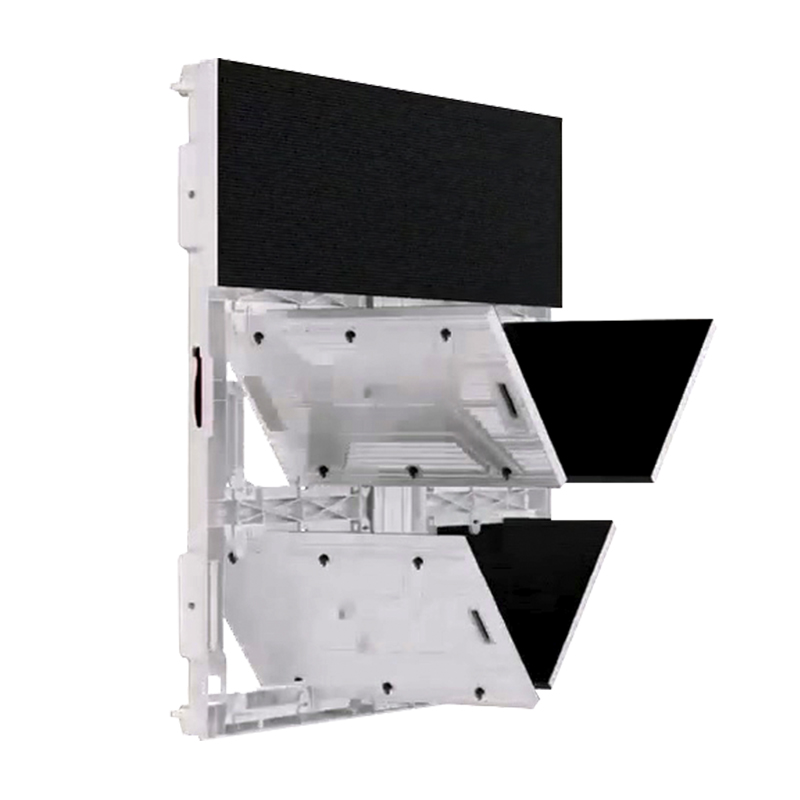

Front & Rear Module Maintenance, Modular Design for Efficiency
Highly integrated design boosts stability. Modules support front/rear maintenance—modular structure enables easy inspections, efficient in installation & maintenance.

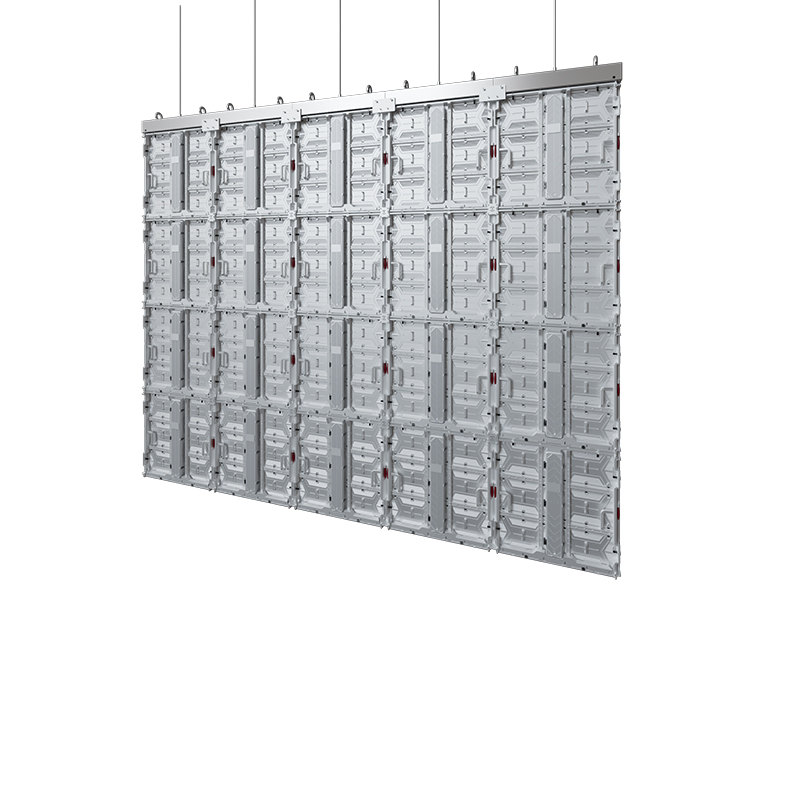

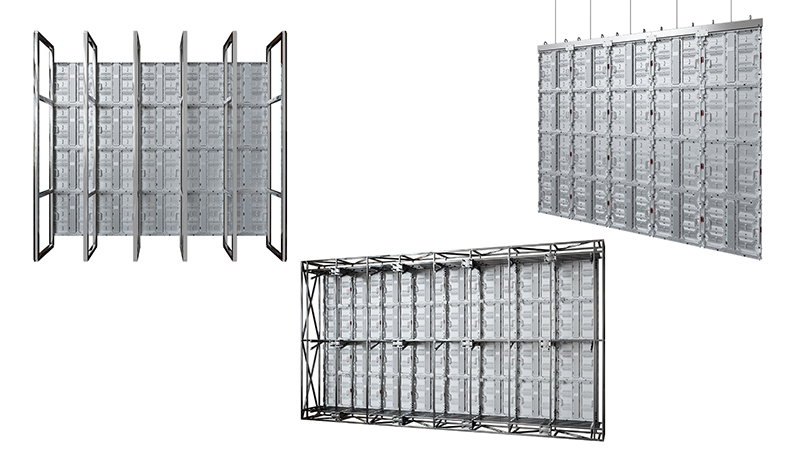

Versatile & Quick Installation, Time-Saving Outdoor Display

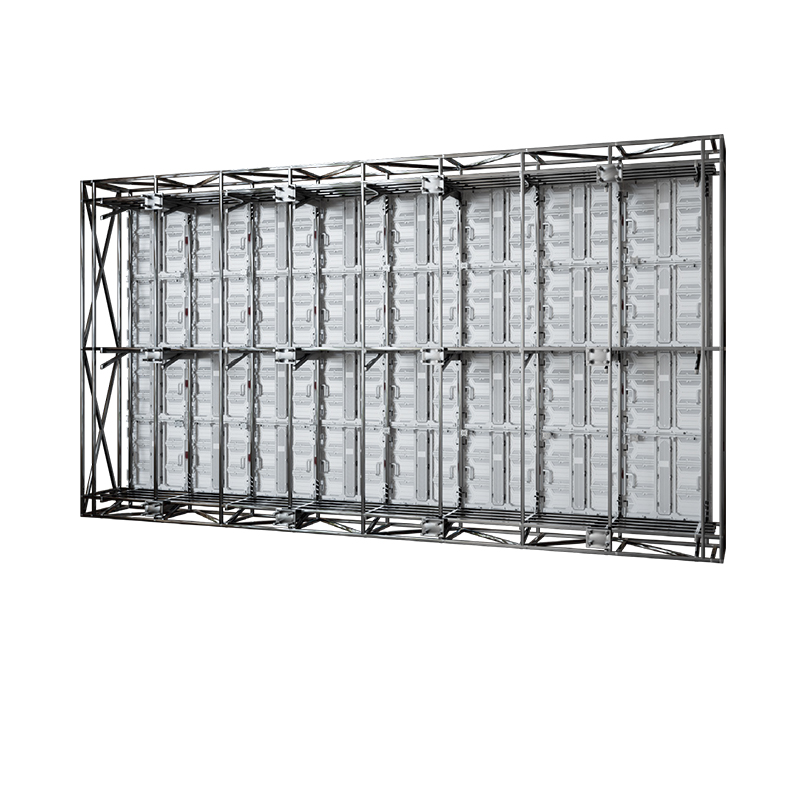

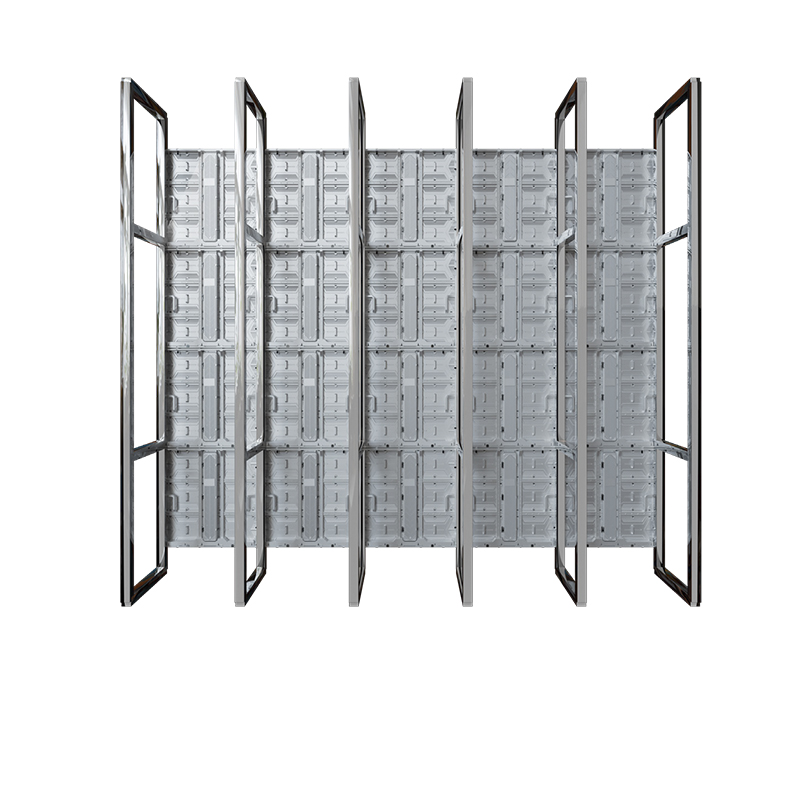

Single cabinet for flexible splicing. Supports installation with special suspenders, patented back frame (floor mounting) and outdoor fixed installation. Multi-method, fast and efficient.
IP66 Rugged Protection: Outdoor Display Benchmark
IP66 waterproof and dustproof rating, effectively isolating sand and dust. Equipped with a new energy-saving chip, it reduces energy consumption by 30%.
parameters
- Title
- Point spacing
- LED type
- Module resolution
- Scanning method
- Module number of points
- Module size
- Box size
- Box resolution
- Point density
- Viewing distance
- Brightness
- Protection grade
- Refresh rate
- Gray scale
- Viewing Angle
- Peak power
- Average power
- led lifespan
- Working voltage
- Operating ambient temperature
- Operating environment humidity
- Material of the box body
- Box usage
- P4
- 4mm
- SMD1921
- 120x80dots
- 1/10scan
- 3456dots
- 480x320mm
- 960x960x71mm
- 240x240 dots
- 62500dots/m2
- ≥4m
- 5000~5500nit
- IP66
- 3840Hz
- 16bits
- H:110°/V:110°
- ≤820W/m²
- ≤270W/m²
- ≥100,000 hours
- AC110V-AC220V@50Hz/60Hz
- -20~50
- 10%~90%
- Die-casting aluminum
- 10kg(不含电源模组)
- P5.71
- 5.71mm
- SMD2727
- 84x56dots
- 1/7scan
- 4704dots
- 480x320mm
- 960x960x71mm
- 168x168 dots
- 30671dots/m2
- ≥5.7m
- 6000~10000nit
- IP66
- 3840Hz
- 16bits
- H:110°/V:110°
- 600W/m²
- 170W/m²
- ≥100,000 hours
- AC110V-AC220V@50Hz/60Hz
- -20~50
- 10%~90%
- Die-casting aluminum
- 10kg(不含电源模组)
- P6.67
- 6.67mm
- SMD2727
- 72x48dots
- 1/6scan
- 3456dots
- 480x320mm
- 960x960x71mm
- 144x144 dots
- 22500dots/m2
- ≥6.6m
- 6000~10000nit
- IP66
- 3840Hz
- 16bits
- H:110°/V:110°
- 590W/m²
- 170W/m²
- ≥100,000 hours
- AC110V-AC220V@50Hz/60Hz
- -20~50
- 10%~90%
- Die-casting aluminum
- 10kg(不含电源模组)
- P8
- 8mm
- SMD2727
- 60x40dots
- 1/4scan
- 2400dots
- 480x320mm
- 960x960x71mm
- 120x120 dots
- 15625dots/m2
- ≥8m
- 6000~10000nit
- IP66
- 3840Hz
- 16bits
- H:110°/V:110°
- 580W/m²
- 165W/m²
- ≥100,000 hours
- AC110V-AC220V@50Hz/60Hz
- -20~50
- 10%~90%
- Die-casting aluminum
- 10kg(不含电源模组)
- P10
- 10mm
- SMD2727
- 48x32dots
- 1/2scan
- 1536dots
- 480x320mm
- 960x960x71mm
- 96x96 dots
- 62,500dots/m2
- ≥10m
- 6000~10000nit
- IP66
- 3840Hz
- 16bits
- H:110°/V:110°
- 600W/m²
- 170W/m²
- ≥100,000 hours
- AC110V-AC220V@50Hz/60Hz
- -20~50
- 10%~90%
- Die-casting aluminum
- 10kg(不含电源模组)
