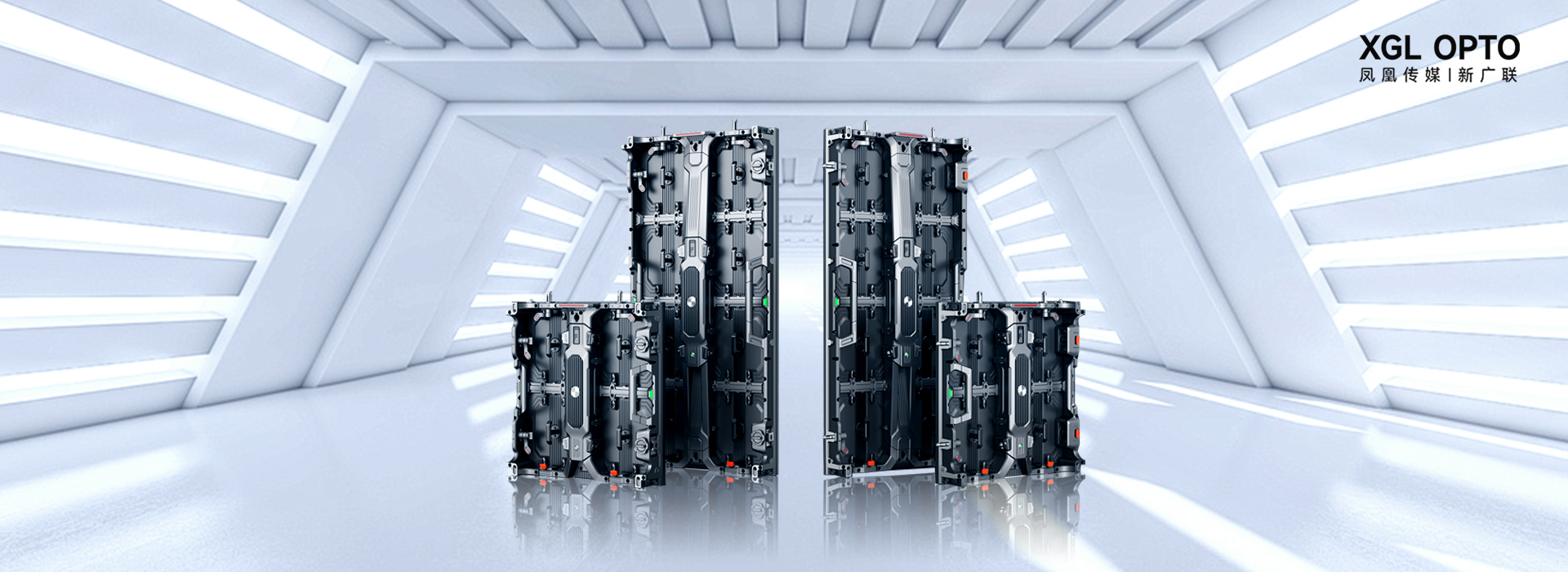

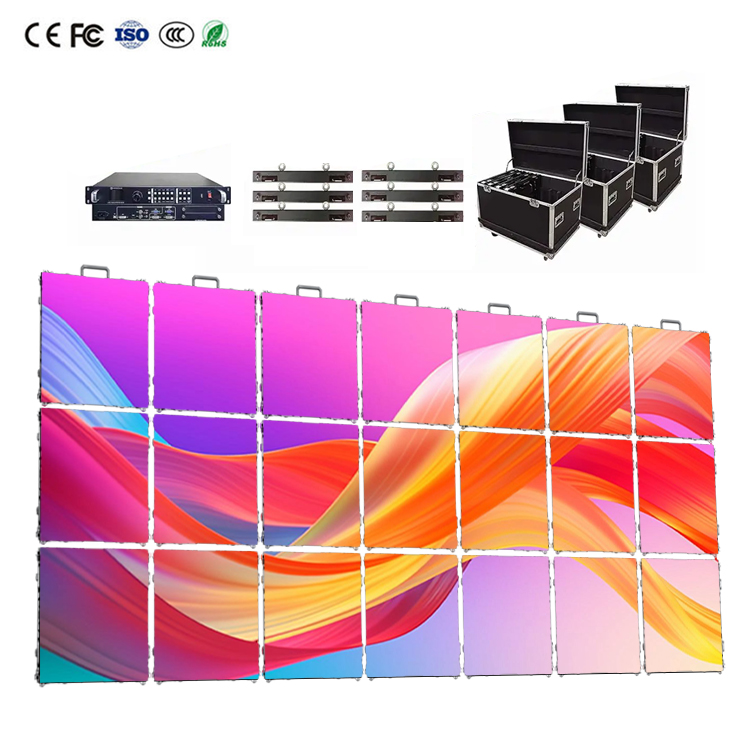

RH series
RH series
Pixel pitch：1.95/2.6/2.97/3.91mm
Module size：250x250mm

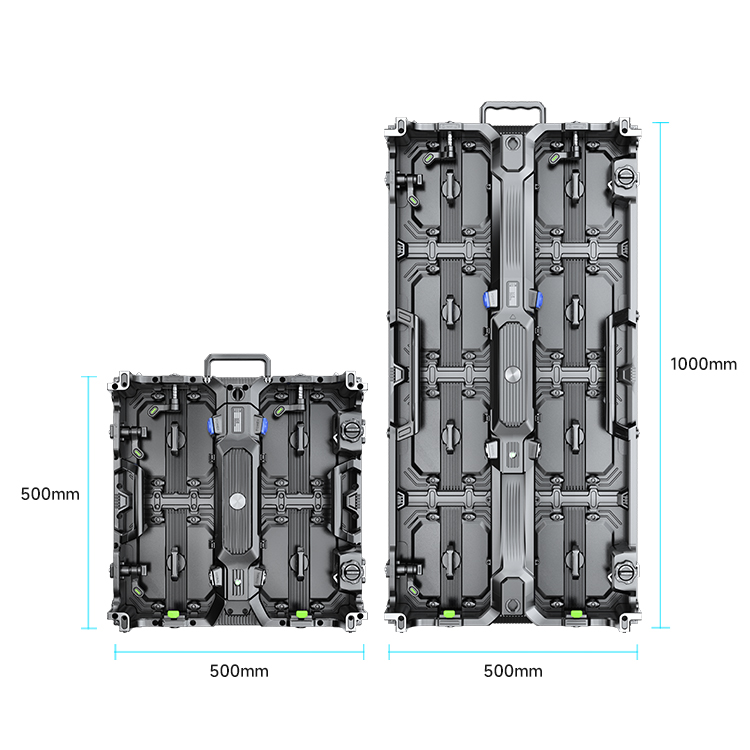

Cabinet size：500x500x68mm
500x1000x68mm
Brightness：600nit
Refresh Frequency：≥3,840Hz
Main feature
High refresh rate
HDR technology
Rapid assembly
More energy-efficient
Front & rear maintenance
Crash-proof & waterproof

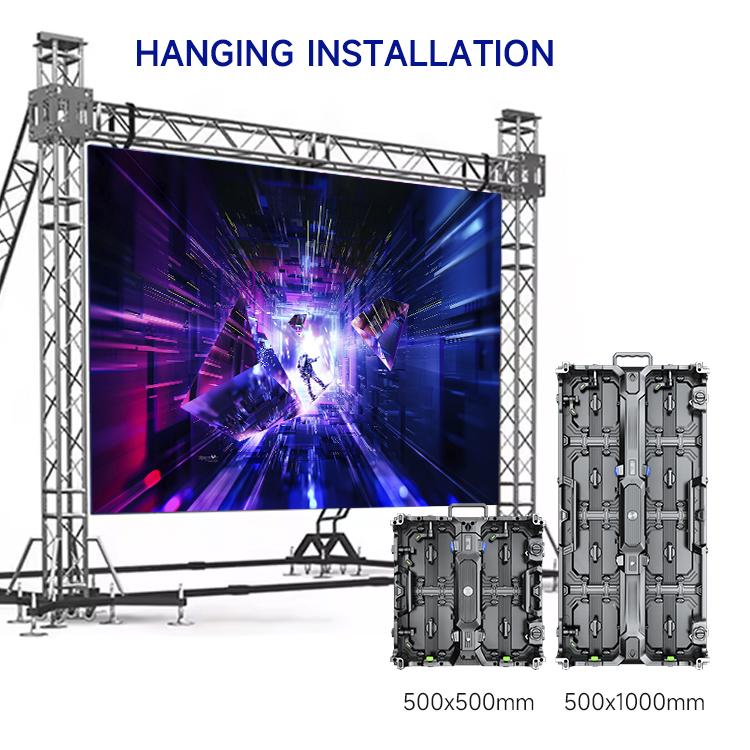

High precision box, easy to install
Easy maintenance, support before and after maintenance, independent central control, easy to disassemble;
The power box can be quickly installed and maintained by locking.
Magnetic connection between module and box;

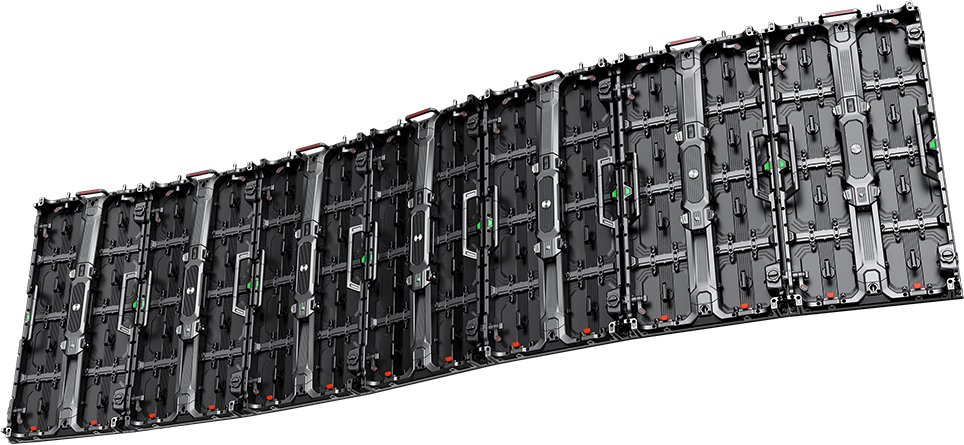

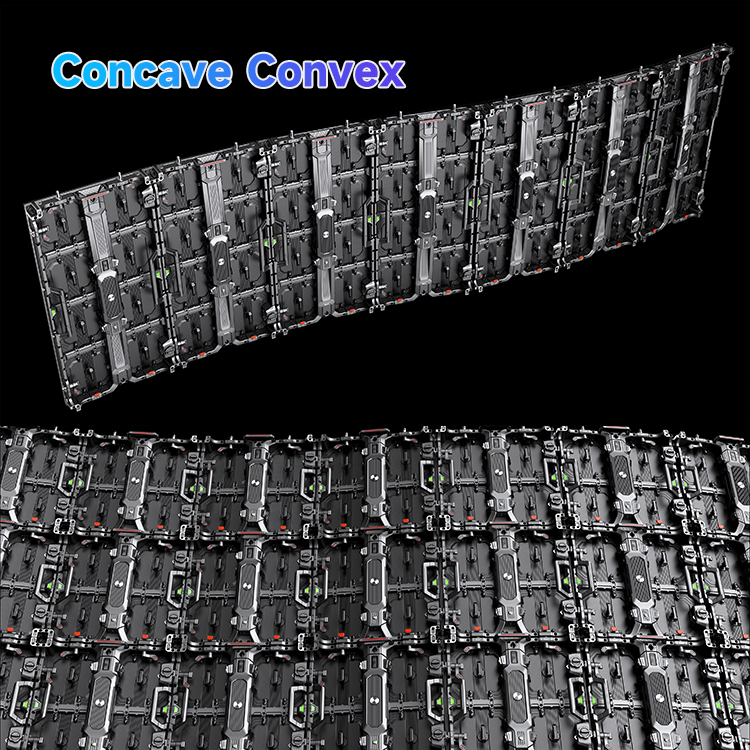

Box curved edge design
Box support inner arc, outer arc multi-angle splicing, adjustable Angle range of -5° to +5°, convenient for customers to create a variety of stage modeling.

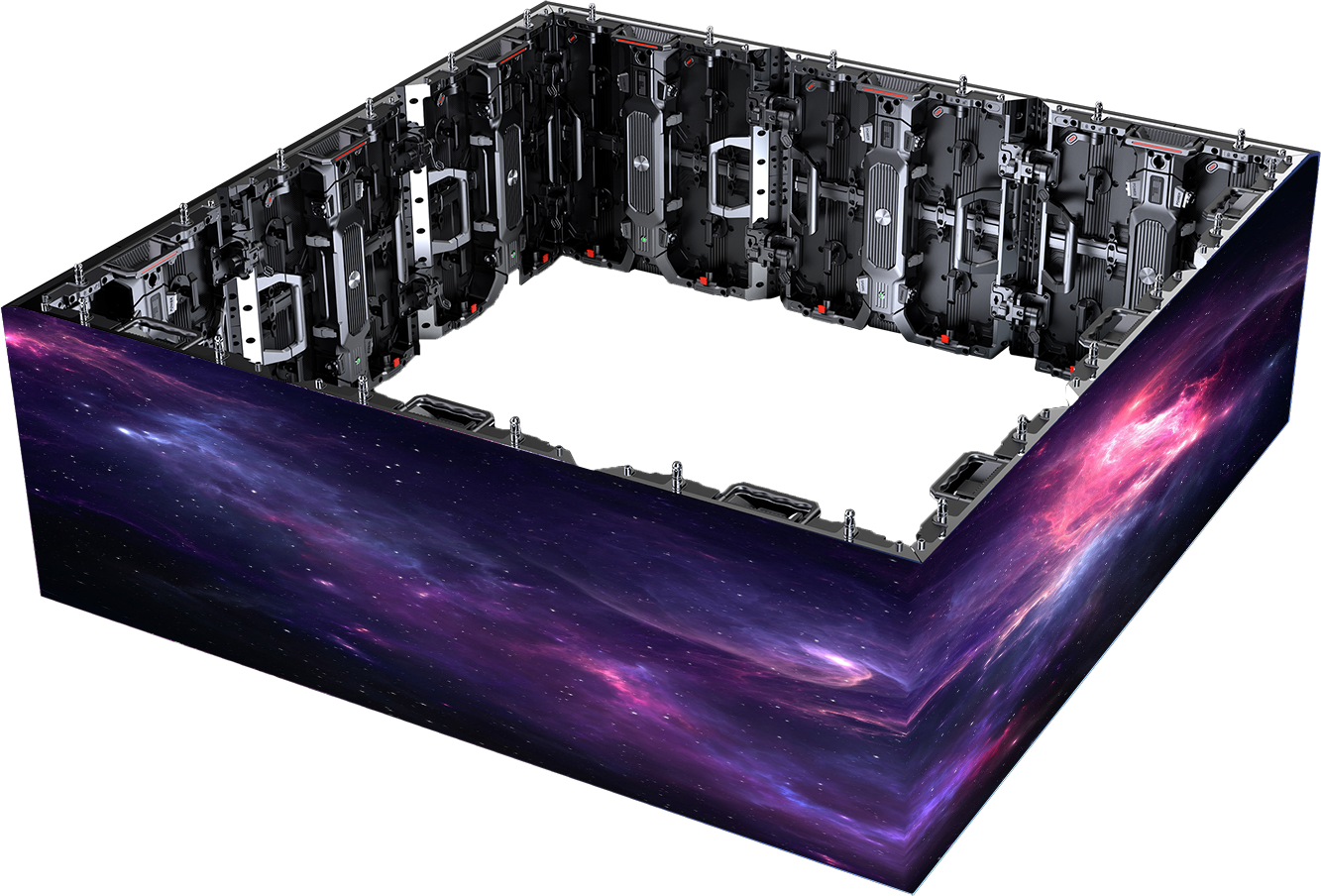

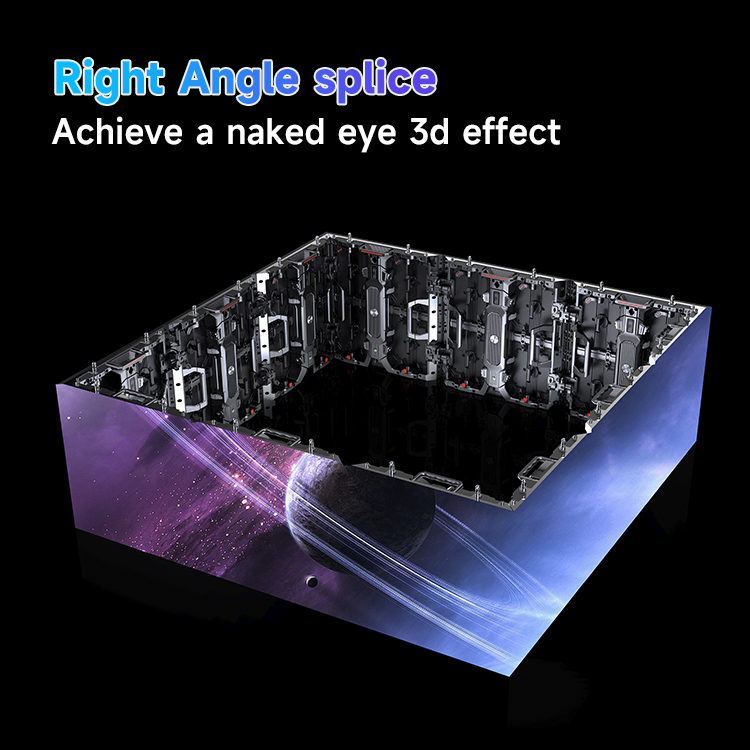

Three-dimensional splicing
Box products provide four-sided corner version box, can be spangled 90° right Angle, convenient for customers to create a cube shape, play creative display
参数
- Title
- 应用场景
- LED种类
- 模组分辨率
- 扫描
- 模组尺寸
- 箱体尺寸
- 箱体分辩率
- 点密度
- 观看距离
- 亮度
- 刷新
- 峰值功率
- 平记功率
- 灰度
- 可视角
- 工作电压
- 运行环境温度
- 运行环境湿度
- 箱体材质
- 箱体重量
- 操作系统
- RH1.953
- Indoor
- SMD1515
- 128dots×12 Bdots
- 1/32scan
- 250mm×250mm
- 500mm×500mm0r500mm×1000mm
- 256dots×512dots
- 262144dots/m²
- ≥1.953m
- 600nits
- ≥3,840Hz
- 350W/m²
- 120W/m²
- 14bits~22bits
- H:110°/V:110°
- AC110V~AC200V@50Hz/60Hz
- -20°C~50°C
- 10%-90%
- Die-casting Aluminum
- 7.5kg/panel
- Windows(Win7.win10,etc)
- RH2.97
- Indoor
- SMD2121
- 84dots×84 Bdots
- 1/42scan
- 250mm×250mm
- 500mm×500mm0r500mm×1000mm
- 168dots×336dots
- 112896dots/m²
- ≥2.97m
- 600nits
- ≥3,840Hz
- 500W/m²
- 160W/m²
- 14bits~22bits
- H:110°/V:110°
- AC110V~AC200V@50Hz/60Hz
- -20°C~50°C
- 10%-90%
- Die-casting Aluminum
- 7.5kg/panel
- Windows(Win7.win10,etc)
- RH2.97
- outdoor
- SMD1516
- 84dots×84dots
- 1/21scan
- 250mm×250mm
- 500mm×500mm0r500mm×1000mm
- 168dots×336dots
- 112896dots/m²
- ≥2.97m
- 4000nits
- ≥3,840Hz
- 650W/m²
- 185W/m²
- 14bits~22bits
- H:110°/V:110°
- AC110V~AC200V@50Hz/60Hz
- -20°C~50°C
- 10%-90%
- Die-casting Aluminum
- 7.5kg/panel
- Windows(Win7.win10,etc)
- RH3.91
- outdoor
- SMD1921
- 64dots×64dots
- 1/16scan
- 250mm×250mm
- 500mm×500mm0r500mm×1000mm
- 128dots×256dots
- 65536dots/m²
- ≥3.91m
- 4000nits
- ≥3,840Hz
- 550W/m²
- 160W/m²
- 14bits~22bits
- H:110°/V:110°
- AC110V~AC200V@50Hz/60Hz
- -20°C~50°C
- 10%-90%
- Die-casting Aluminum
- 7.5kg/panel
- Windows(Win7.win10,etc)
