Flash driveA USB flash drive, also known as a flash drive, is a small portable storage device that uses a USB interface to connect to a computer and usually uses flash memory for data storage.

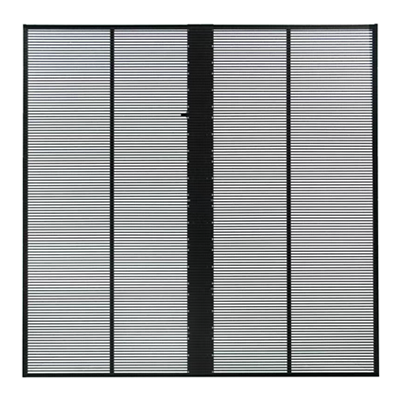

Transparent screen

Transparent screen

Pixel pitch:2.6/3.91/7.8/10mm
Display size:500X500mm/500x1000mm
Brightness:3000~5000nit
Refresh Frequency:3840HZ

Main features

High transparency
Ultra-thin & light
Modularization
Wide perspective
Quick installation
Anti-collision & waterproof

High transparency design

A complete LED unit box is fixed through a PCB board and a support structure. The structure adopts a louver design, with the light strips arranged horizontally at equal intervals one by one, creating a hollowed-out effect and making the screen transparent.

Light and convenient

Ornamental value: It has high transparency and the product has high brightness.
Environmental adaptability: The structural unit is a box, and the box unit can bend in a single direction with a large curvature.
Maintainability: Modular maintenance method, capable of both front and back maintenance, facilitating repair.

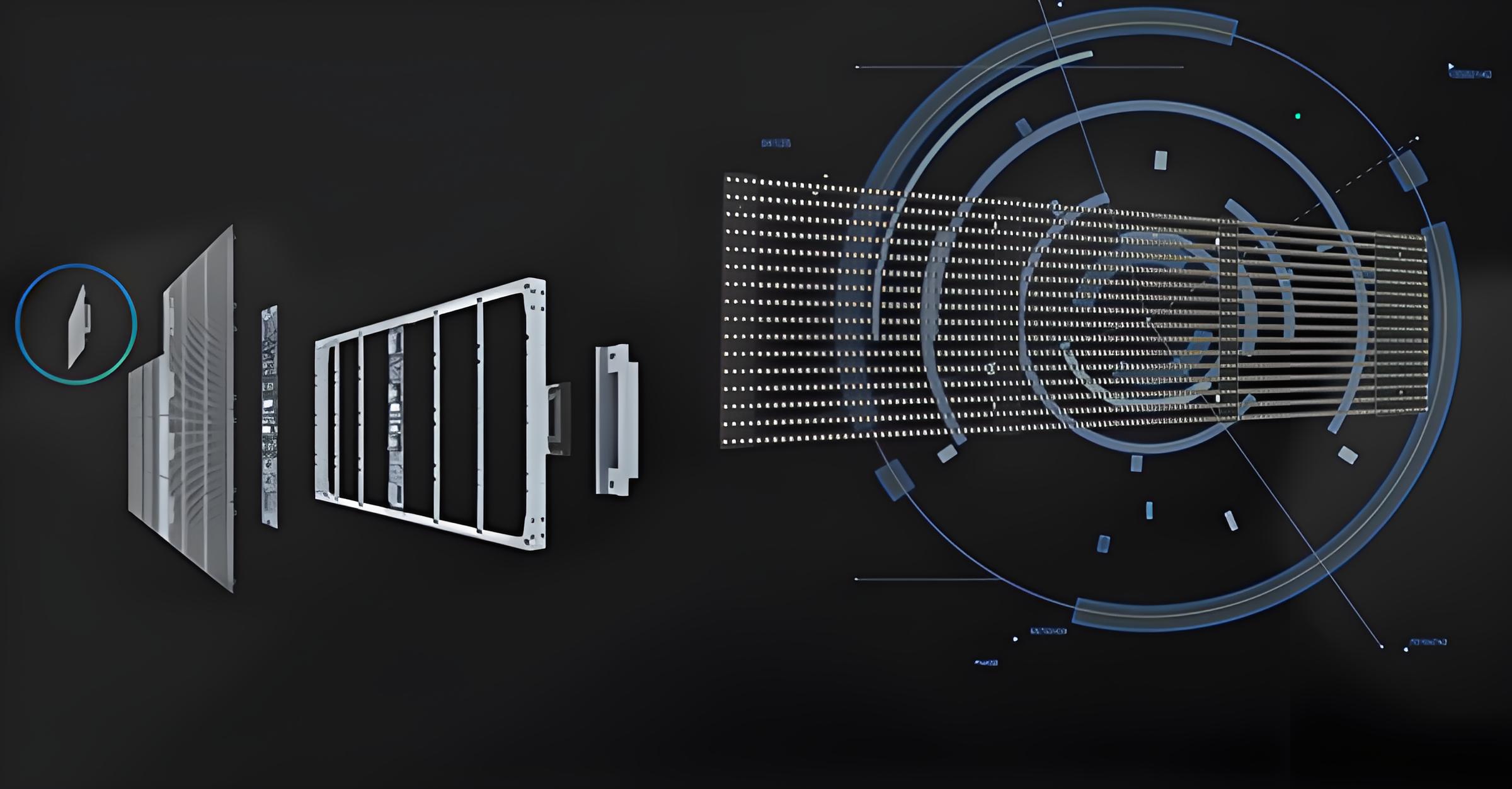

Modular design

High-efficiency modular production and manufacturing, flexible and fast magnetic installation, precise guidance and positioning, stable gold-plated socket transmission, wide-angle positive light-emitting tube mode, all-round chip dispensing protection, and safe circuit line width design.

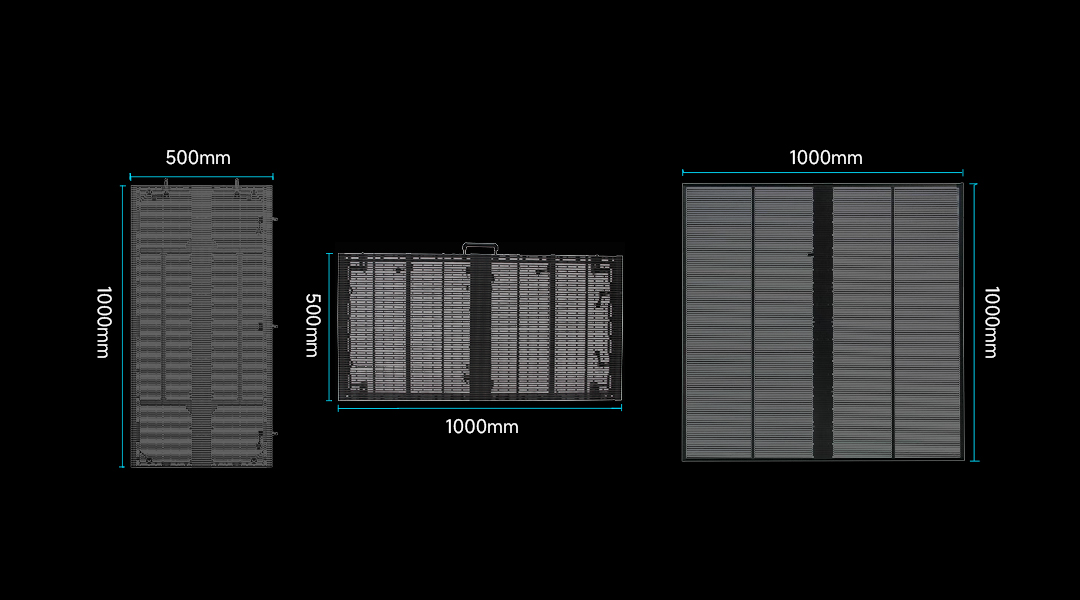

Coral dimension

Parameters

  • Productmodel
  • Pointspacing
  • Pixelstructure
  • LEDpackaging
  • Pixeldensity
  • Modulesize
  • Moduleresolution
  • Boxspecification
  • Boxtype
  • Moduleresolution
  • Permeability rate
  • Powerconsumption (peak, average)
  • Brightness
  • Drivemode
  • Controlsystem peep
  • Assembly
  • Boxweight
  • Graylevel
  • Refreshrate
  • Framerate change
  • Perspective
  • Inputvoltage
  • P3.91
  • 3.91mmH:7.8W
  • SD1921(1R1G1B)
  • First-line brand
  • 32768bit/m²
  • 250×500mm
  • 64×64bit
  • 500x1000/500x500mm
  • Aluminum die-casting
  • 128x128bit/128x64bit
  • 40%
  • 600W/m²、180W/m²
  • 3000-4000cd/m²
  • Constant current drive
  • novastar
  • Straight screen/curved screen
  • 9kg/pcs
  • 14bit
  • 3840Hz
  • 60Hz
  • Level140°,Vertical140°
  • AC220V/50Hz,AC110V/60Hz
  • P6.94
  • 6.94mH:6.94W
  • SMD1921(1R1G1B)
  • First-line brand
  • 20738bit/m²
  • 250×500mm
  • 36×72bit
  • 500x1000/500x500mm
  • Aluminum die-casting
  • 72x144bit/72x72bit
  • 35%
  • 600w/m²、180W/m²
  • 3000-4000cd/m²
  • Constant current drive
  • novastar
  • Straight screen/curved screen
  • 9kg/pcs
  • 14bit
  • 3840Hz
  • 60Hz
  • Level140°,Vertical140°
  • AC220V/50Hz,AC110V/60Hz
